Antrum of Stomach Ultrasound Anatomy

4 min read

Antrum of stomach ultrasound anatomy is presented here as a labeled cross-sectional atlas. Every view pairs a color-coded anatomy diagram with the matching real ultrasound image, so you can learn the expected shape and position of the antrum of stomach and then recognise it on a real scan.

In the atlas legend the antrum of stomach belongs to the gi tract group and is shown in a consistent colour wherever it appears. The small body marker on each card shows where the transducer sits for that view, which makes it easier to reproduce the image at the bedside.

Antrum of stomach appears in 19 labeled views in this atlas. Each card below shows the anatomy diagram, the real ultrasound image and the probe position for that scan. Coloured dots list every structure labeled in the view, with antrum of stomach highlighted.

19Scan views

Antrum of stomach across the atlas

Left lobe of liver, ligamentum teres, boundary between lateral and medial segments

Liver / Liver in Longitudinal Sections · Longitudinal plane

Antrum of stomach ultrasound image, Left lobe of liver, ligamentum teres, boundary between lateral and medial segments

18Splenic vein21Left lobe of liver42Body of pancreas45Pancreatic duct73Antrum of stomach74Cardia93Gas94Artifact98Heart

Left lobe of liver, ligamentum teres, boundary between lateral and medial segments

Liver / Liver in Longitudinal Sections · Longitudinal plane

1Aorta3Celiac trunk5Splenic artery7Superior mesenteric artery15Left renal vein18Splenic vein21Left lobe of liver42Body of pancreas73Antrum of stomach74Cardia90Spinal column98Heart

Medial and anterior hepatic segments, quadrate lobe, ligamentum teres, gallbladder

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

Antrum of stomach ultrasound image, Medial and anterior hepatic segments, quadrate lobe, ligamentum teres, gallbladder

1Aorta10Vena cava14Right renal vein17Portal vein19Superior mesenteric vein22Quadrate lobe24Ligamentum teres30Gallbladder41Head of pancreas42Body of pancreas73Antrum of stomach76Duodenum

Right portal vein branch, ligamentum venosum

Gallbladder / Gallbladder in Upper Abdominal Transverse Sections · Transverse plane

Antrum of stomach ultrasound image, Right portal vein branch, ligamentum venosum

4Hepatic artery10Vena cava17Portal vein20Right lobe of liver73Antrum of stomach76Duodenum92Acoustic shadow96Diaphragm

Vena cava, duodenum, bifurcation of portal vein

Gallbladder / Gallbladder in Longitudinal Sections · Longitudinal plane

Antrum of stomach ultrasound image, Vena cava, duodenum, bifurcation of portal vein

4Hepatic artery10Vena cava17Portal vein20Right lobe of liver73Antrum of stomach76Duodenum94Artifact

Duodenum lateral to head of pancreas

Pancreas / Pancreas in Longitudinal Sections · Longitudinal plane

Antrum of stomach ultrasound image, Duodenum lateral to head of pancreas

17Portal vein20Right lobe of liver36Bile duct73Antrum of stomach76Duodenum

Head of pancreas, bile duct

Pancreas / Pancreas in Longitudinal Sections · Longitudinal plane

Antrum of stomach ultrasound image, Head of pancreas, bile duct

4Hepatic artery10Vena cava17Portal vein20Right lobe of liver36Bile duct41Head of pancreas73Antrum of stomach

Head of pancreas, bile duct

Pancreas / Pancreas in Longitudinal Sections · Longitudinal plane

4Hepatic artery10Vena cava17Portal vein22Quadrate lobe23Caudate lobe36Bile duct41Head of pancreas73Antrum of stomach

Body of stomach, liver

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Left to Right · Longitudinal plane

Antrum of stomach ultrasound image, Body of stomach, liver

5Splenic artery21Left lobe of liver42Body of pancreas45Pancreatic duct73Antrum of stomach77Small bowel

Antrum, liver, pancreas

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Left to Right · Longitudinal plane

Antrum of stomach ultrasound image, Antrum, liver, pancreas

22Quadrate lobe42Body of pancreas73Antrum of stomach77Small bowel94Artifact

Pylorus, pancreas, liver

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Left to Right · Longitudinal plane

Antrum of stomach ultrasound image, Pylorus, pancreas, liver

4Hepatic artery10Vena cava17Portal vein22Quadrate lobe23Caudate lobe36Bile duct41Head of pancreas73Antrum of stomach75Duodenal bulb

Antrum, liver, pancreas

Stomach / Upper Abdominal Transverse Scans of the Antrum and Duodenum from Above Downward · Transverse plane

1Aorta10Vena cava19Superior mesenteric vein20Right lobe of liver21Left lobe of liver24Ligamentum teres30Gallbladder41Head of pancreas42Body of pancreas73Antrum of stomach

Antrum, duodenum, liver, pancreas, gallbladder

Stomach / Upper Abdominal Transverse Scans of the Antrum and Duodenum from Above Downward · Transverse plane

Antrum of stomach ultrasound image, Antrum, duodenum, liver, pancreas, gallbladder

1Aorta10Vena cava19Superior mesenteric vein20Right lobe of liver21Left lobe of liver24Ligamentum teres30Gallbladder41Head of pancreas42Body of pancreas45Pancreatic duct73Antrum of stomach75Duodenal bulb

Antrum, duodenum, liver, pancreas, gallbladder

Stomach / Upper Abdominal Transverse Scans of the Antrum and Duodenum from Above Downward · Transverse plane

1Aorta10Vena cava11Left hepatic vein20Right lobe of liver21Left lobe of liver22Quadrate lobe24Ligamentum teres30Gallbladder41Head of pancreas42Body of pancreas45Pancreatic duct73Antrum of stomach76Duodenum

Antrum, gallbladder

Stomach / Upper Abdominal Transverse Scans of the Antrum and Duodenum from Above Downward · Transverse plane

Antrum of stomach ultrasound image, Antrum, gallbladder

20Right lobe of liver21Left lobe of liver22Quadrate lobe30Gallbladder73Antrum of stomach76Duodenum

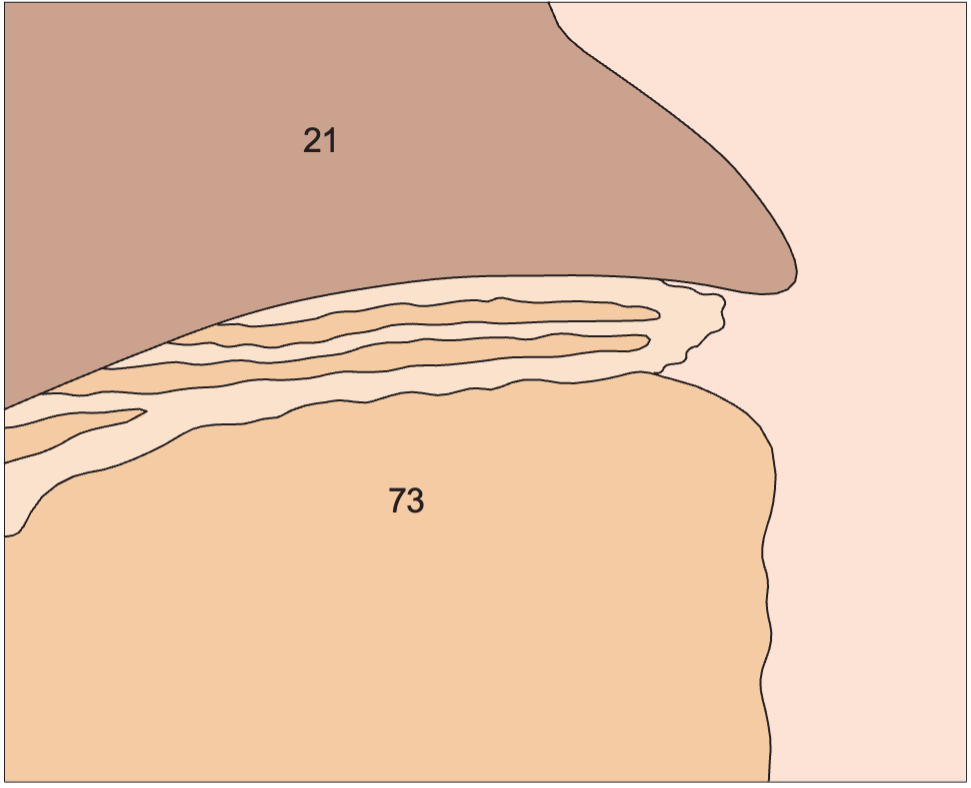

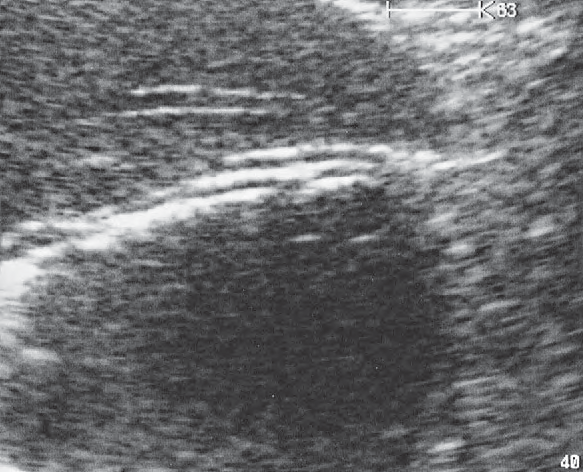

Layers of gastric wall

Stomach / Details of the Stomach

Antrum of stomach ultrasound image, Layers of gastric wall

21Left lobe of liver73Antrum of stomach

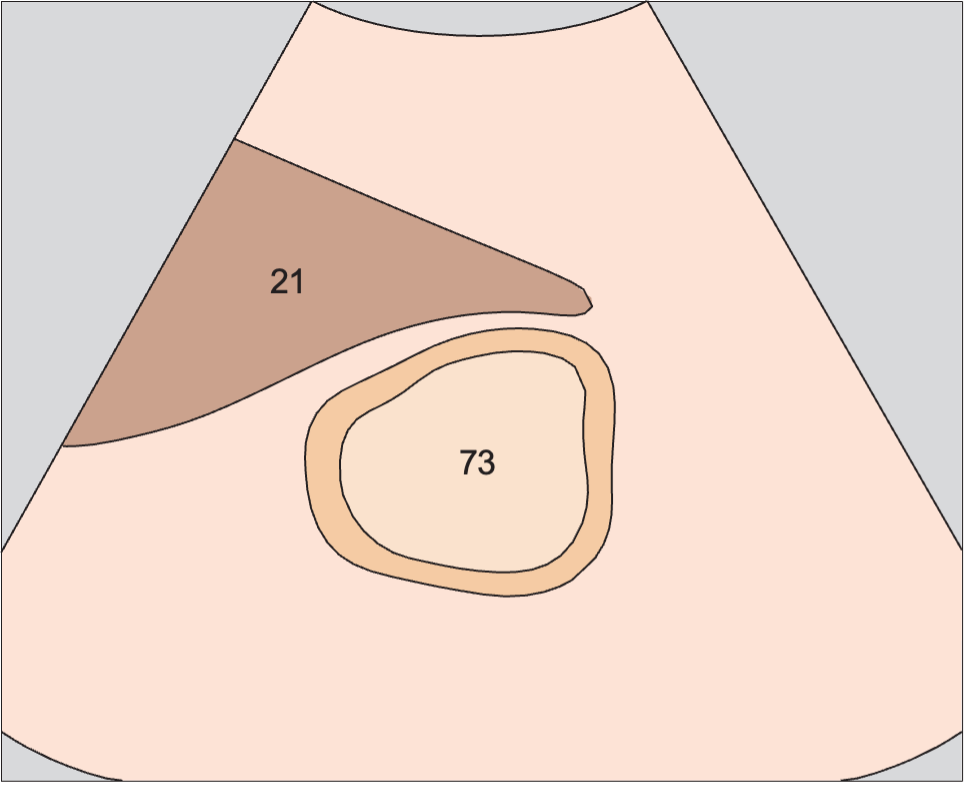

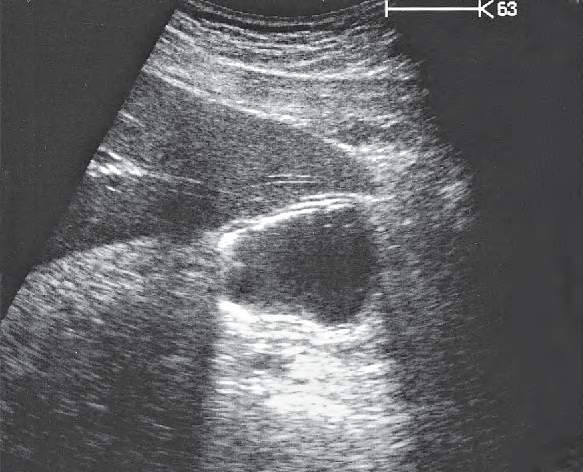

Layers of gastric wall

Stomach / Details of the Stomach

21Left lobe of liver73Antrum of stomach

Gastric folds

Stomach / Details of the Stomach

Antrum of stomach ultrasound image, Gastric folds

21Left lobe of liver73Antrum of stomach90Spinal column

Gastric folds

Stomach / Details of the Stomach

21Left lobe of liver73Antrum of stomach94Artifact

Anatomy diagrams, ultrasound images and probe positions are part of the Ultrasound Anatomy atlas. Colours follow the atlas legend, grouping vessels, organs and other structures by type.
