Body of Stomach Ultrasound Anatomy

3 min read

Body of stomach ultrasound anatomy is presented here as a labeled cross-sectional atlas. Every view pairs a color-coded anatomy diagram with the matching real ultrasound image, so you can learn the expected shape and position of the body of stomach and then recognise it on a real scan.

In the atlas legend the body of stomach belongs to the gi tract group and is shown in a consistent colour wherever it appears. The small body marker on each card shows where the transducer sits for that view, which makes it easier to reproduce the image at the bedside.

Body of stomach appears in 10 labeled views in this atlas. Each card below shows the anatomy diagram, the real ultrasound image and the probe position for that scan. Coloured dots list every structure labeled in the view, with body of stomach highlighted.

10Scan views

Body of stomach across the atlas

Left lobe of liver, lateral segment, left portal vein branch

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

Body of stomach ultrasound image, Left lobe of liver, lateral segment, left portal vein branch

1Aorta4Hepatic artery10Vena cava15Left renal vein17Portal vein18Splenic vein26Lateral segment27Medial segment43Tail of pancreas72Body of stomach93Gas94Artifact96Diaphragm

Left lobe of liver, lateral segment, ligamentum teres

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

Body of stomach ultrasound image, Left lobe of liver, lateral segment, ligamentum teres

1Aorta4Hepatic artery7Superior mesenteric artery10Vena cava15Left renal vein17Portal vein18Splenic vein22Quadrate lobe24Ligamentum teres26Lateral segment27Medial segment42Body of pancreas43Tail of pancreas45Pancreatic duct72Body of stomach93Gas94Artifact96Diaphragm

Medial and anterior hepatic segments, left portal vein branch, caudate lobe

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

Body of stomach ultrasound image, Medial and anterior hepatic segments, left portal vein branch, caudate lobe

1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein17Portal vein23Caudate lobe25Ligamentum venosum72Body of stomach96Diaphragm

Medial and anterior hepatic segments, left portal vein branch, caudate lobe

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein17Portal vein23Caudate lobe25Ligamentum venosum72Body of stomach90Spinal column96Diaphragm

Cardia, aorta, liver

Stomach / Upper Abdominal Transverse Scans of the Gastric Cardia from Above Downward · Transverse plane

Body of stomach ultrasound image, Cardia, aorta, liver

1Aorta10Vena cava12Middle hepatic vein21Left lobe of liver72Body of stomach74Cardia90Spinal column94Artifact96Diaphragm

Cardia, body of stomach, aorta, liver

Stomach / Upper Abdominal Transverse Scans of the Gastric Cardia from Above Downward · Transverse plane

Body of stomach ultrasound image, Cardia, body of stomach, aorta, liver

1Aorta10Vena cava12Middle hepatic vein17Portal vein20Right lobe of liver21Left lobe of liver72Body of stomach90Spinal column

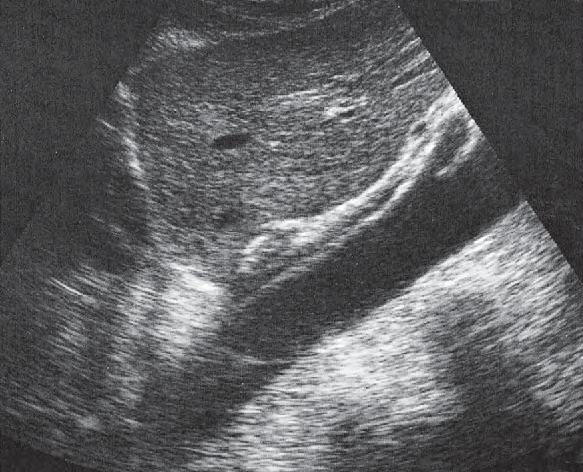

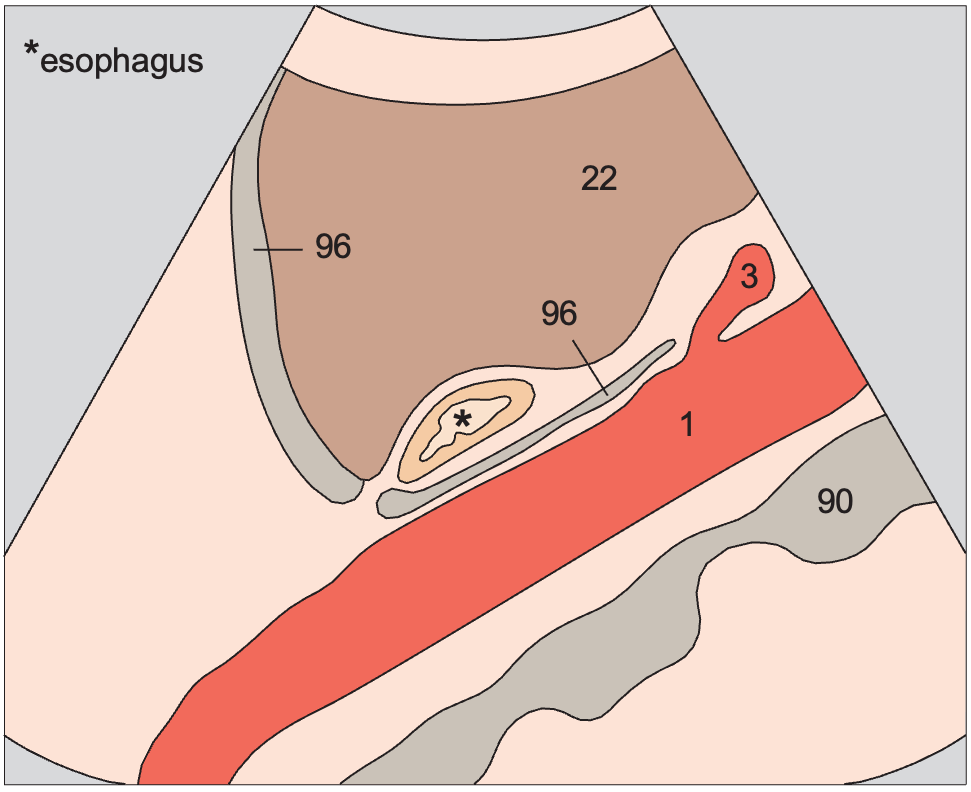

Esophagus, aorta, liver

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Right to Left · Longitudinal plane

Body of stomach ultrasound image, Esophagus, aorta, liver

21Left lobe of liver72Body of stomach74Cardia96Diaphragm

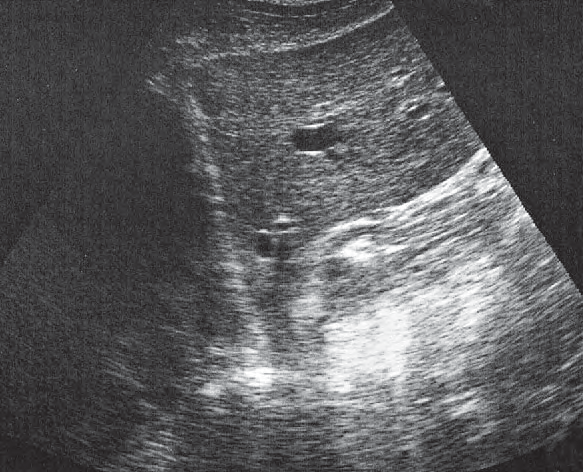

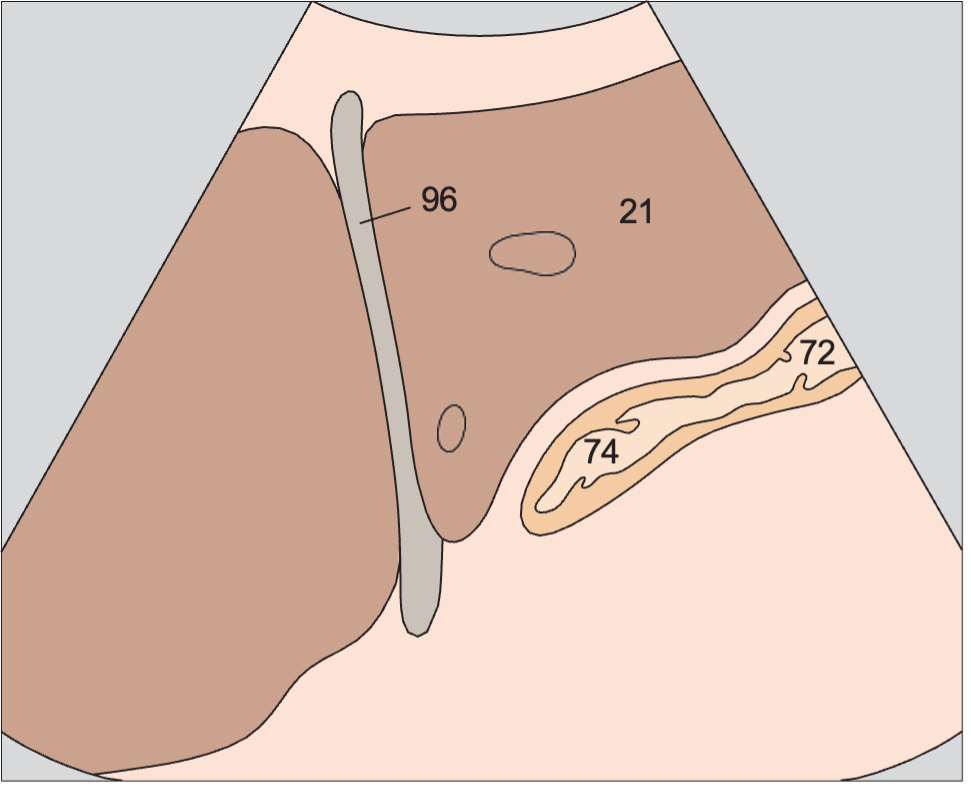

Cardia, liver

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Right to Left · Longitudinal plane

Body of stomach ultrasound image, Cardia, liver

21Left lobe of liver72Body of stomach96Diaphragm

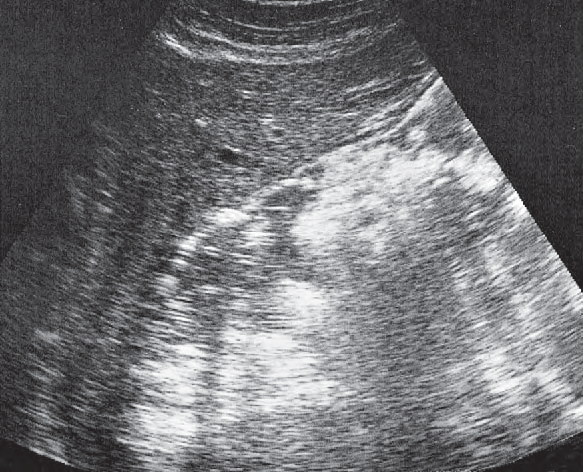

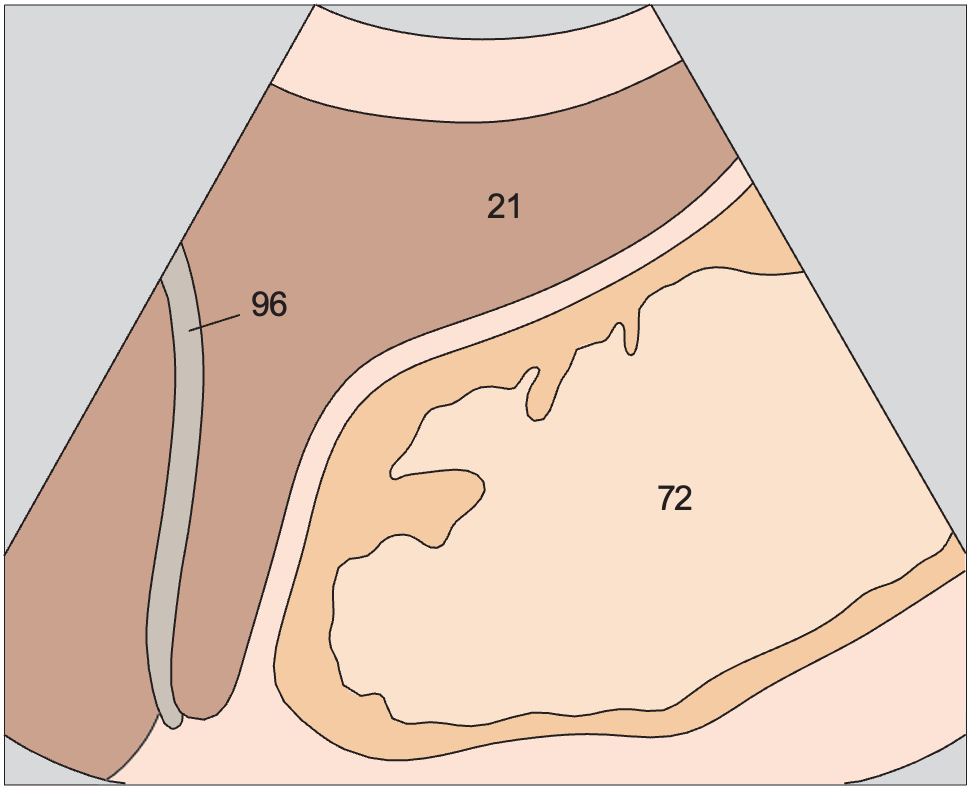

Body of stomach, liver

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Right to Left · Longitudinal plane

Body of stomach ultrasound image, Body of stomach, liver

21Left lobe of liver72Body of stomach

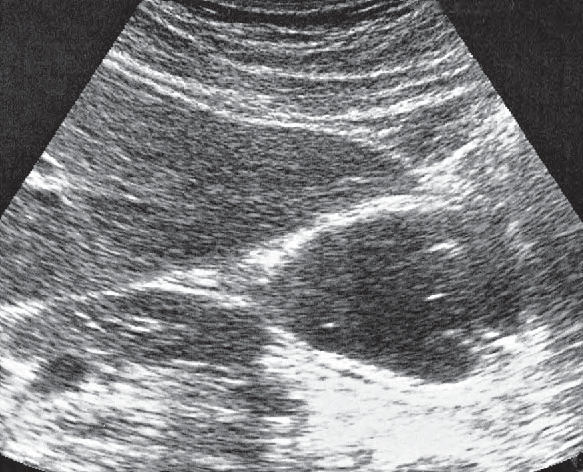

Antrum, liver, pancreas

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Left to Right · Longitudinal plane

Body of stomach ultrasound image, Antrum, liver, pancreas

21Left lobe of liver72Body of stomach

Anatomy diagrams, ultrasound images and probe positions are part of the Ultrasound Anatomy atlas. Colours follow the atlas legend, grouping vessels, organs and other structures by type.
