Caudate Lobe Ultrasound Anatomy

5 min read
Caudate lobe ultrasound image

Caudate lobe ultrasound anatomy is presented here as a labeled cross-sectional atlas. Every view pairs a color-coded anatomy diagram with the matching real ultrasound image, so you can learn the expected shape and position of the caudate lobe and then recognise it on a real scan.

In the atlas legend the caudate lobe belongs to the liver group and is shown in a consistent colour wherever it appears. The small body marker on each card shows where the transducer sits for that view, which makes it easier to reproduce the image at the bedside.

Caudate lobe appears in 17 labeled views in this atlas. Each card below shows the anatomy diagram, the real ultrasound image and the probe position for that scan. Coloured dots list every structure labeled in the view, with caudate lobe highlighted.

17Scan views

Caudate lobe across the atlas

Probe position, Passage of aorta and vena cava through diaphragm

Passage of aorta and vena cava through diaphragm

Vessels / Aorta and Vena Cava in Suprarenal Transverse Sections, Including the Renal Vessels · Transverse plane

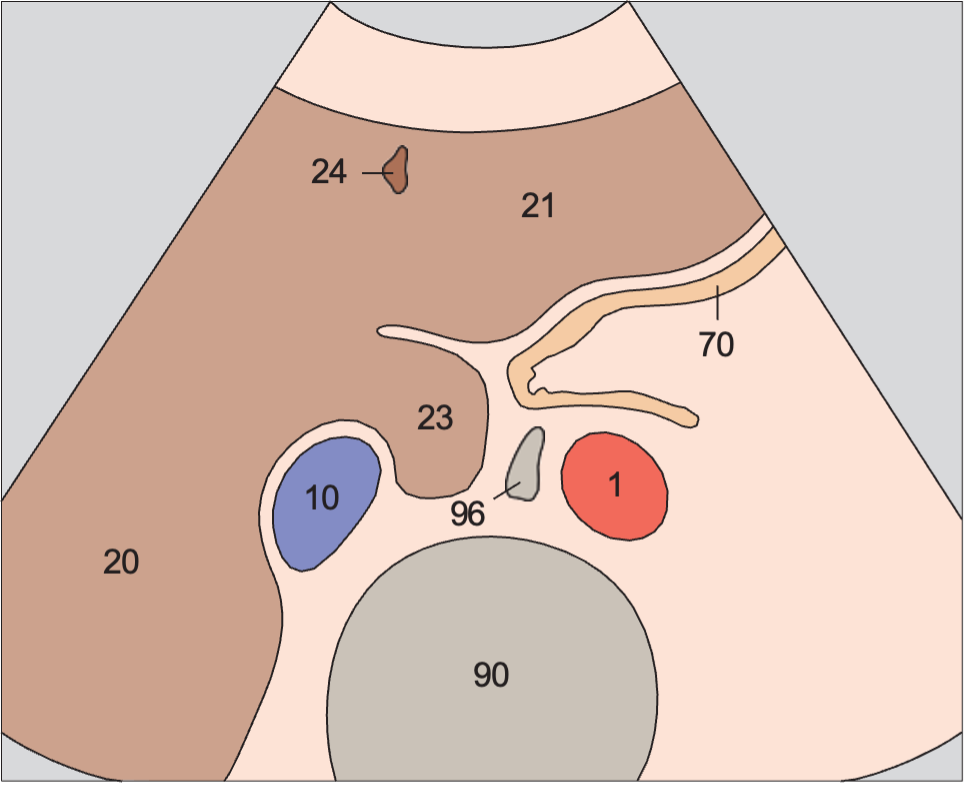

AnatomyCaudate lobe anatomy diagram, Passage of aorta and vena cava through diaphragm
UltrasoundCaudate lobe ultrasound image, Passage of aorta and vena cava through diaphragm
1Aorta10Vena cava20Right lobe of liver21Left lobe of liver23Caudate lobe24Ligamentum teres70Stomach90Spinal column96Diaphragm
Probe position, Left gastric artery

Left gastric artery

Vessels / Aorta and Vena Cava in Suprarenal Transverse Sections, Including the Renal Vessels · Transverse plane

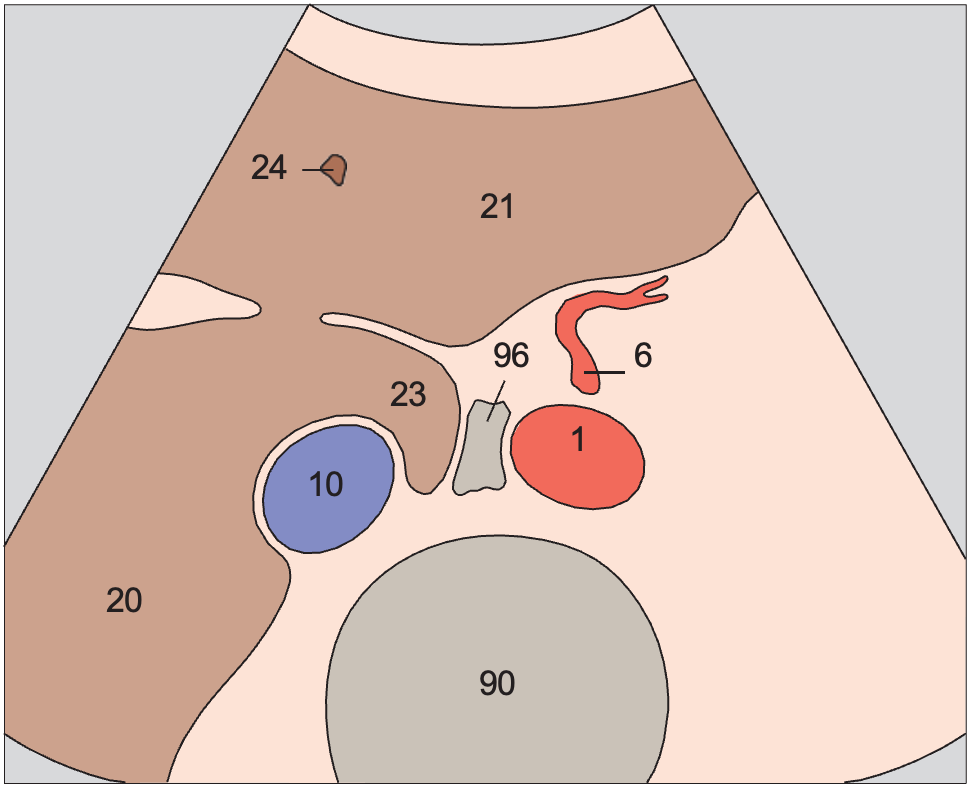

AnatomyCaudate lobe anatomy diagram, Left gastric artery
UltrasoundCaudate lobe ultrasound image, Left gastric artery
1Aorta6Left gastric artery10Vena cava20Right lobe of liver21Left lobe of liver23Caudate lobe24Ligamentum teres90Spinal column96Diaphragm
Probe position, Left lobe of liver, ligamentum teres, boundary between lateral and medial segments, caudate lobe

Left lobe of liver, ligamentum teres, boundary between lateral and medial segments, caudate lobe

Liver / Liver in Longitudinal Sections · Longitudinal plane

AnatomyCaudate lobe anatomy diagram, Left lobe of liver, ligamentum teres, boundary between lateral and medial segments, caudate lobe
UltrasoundCaudate lobe ultrasound image, Left lobe of liver, ligamentum teres, boundary between lateral and medial segments, caudate lobe
10Vena cava11Left hepatic vein17Portal vein21Left lobe of liver23Caudate lobe24Ligamentum teres25Ligamentum venosum70Stomach92Acoustic shadow93Gas96Diaphragm
Probe position, Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe

Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe

Liver / Liver in Longitudinal Sections · Longitudinal plane

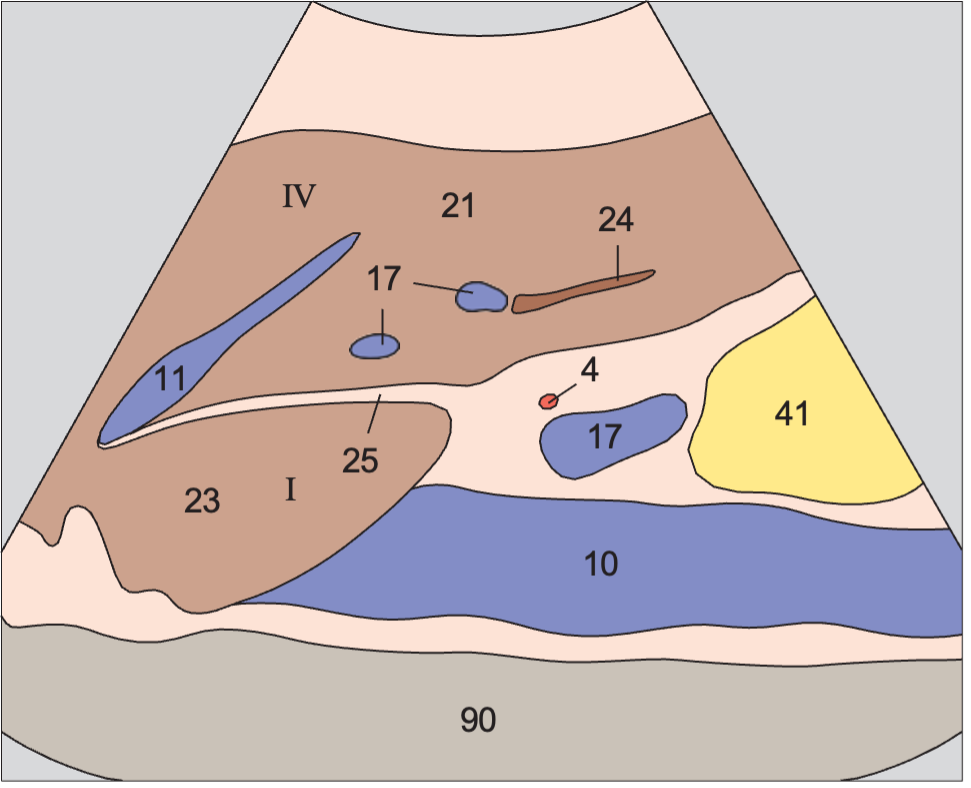

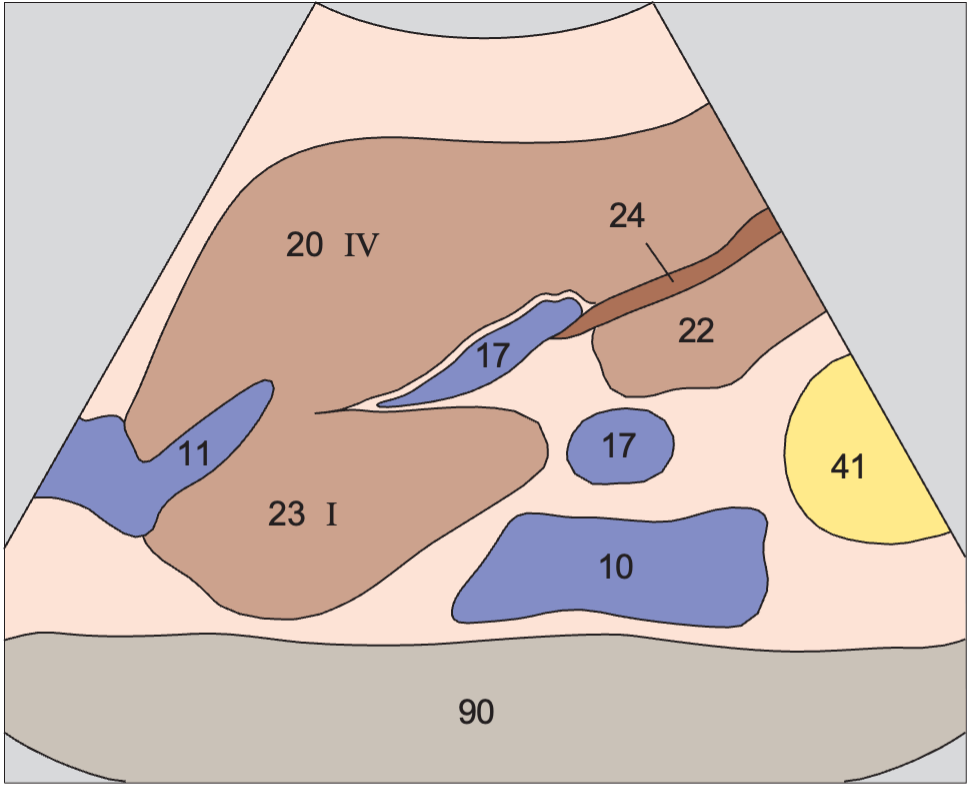

AnatomyCaudate lobe anatomy diagram, Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe

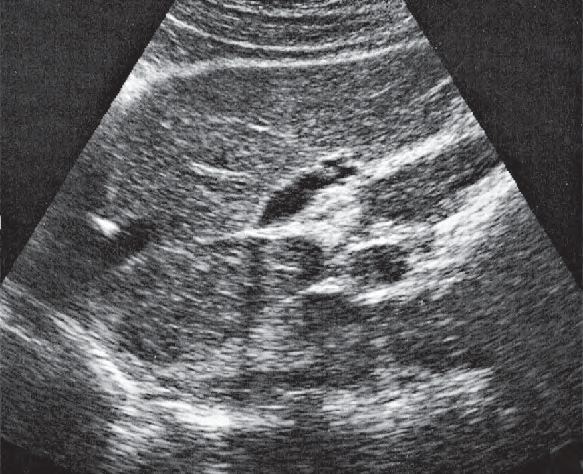

UltrasoundCaudate lobe ultrasound image, Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe
4Hepatic artery10Vena cava11Left hepatic vein17Portal vein21Left lobe of liver23Caudate lobe24Ligamentum teres25Ligamentum venosum41Head of pancreas90Spinal column
Probe position, Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe

Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe

Liver / Liver in Longitudinal Sections · Longitudinal plane

AnatomyCaudate lobe anatomy diagram, Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe
UltrasoundCaudate lobe ultrasound image, Left hepatic vein, ligamentum teres, boundary between lateral and medial segments, caudate lobe
10Vena cava11Left hepatic vein17Portal vein20Right lobe of liver22Quadrate lobe23Caudate lobe24Ligamentum teres41Head of pancreas90Spinal column
Probe position, Left lobe of liver, lateral segment, heart

Left lobe of liver, lateral segment, heart

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

AnatomyCaudate lobe anatomy diagram, Left lobe of liver, lateral segment, heart
UltrasoundCaudate lobe ultrasound image, Left lobe of liver, lateral segment, heart
10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein23Caudate lobe25Ligamentum venosum26Lateral segment27Medial segment28Anterior segment29Posterior segment71Fundus of stomach96Diaphragm
Probe position, Left lobe of liver, lateral segment, hepatic veins

Left lobe of liver, lateral segment, hepatic veins

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

AnatomyCaudate lobe anatomy diagram, Left lobe of liver, lateral segment, hepatic veins
UltrasoundCaudate lobe ultrasound image, Left lobe of liver, lateral segment, hepatic veins
10Vena cava11Left hepatic vein12Middle hepatic vein23Caudate lobe25Ligamentum venosum26Lateral segment27Medial segment28Anterior segment71Fundus of stomach93Gas94Artifact
Probe position, Left lobe of liver, lateral segment, caudate lobe

Left lobe of liver, lateral segment, caudate lobe

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

AnatomyCaudate lobe anatomy diagram, Left lobe of liver, lateral segment, caudate lobe
UltrasoundCaudate lobe ultrasound image, Left lobe of liver, lateral segment, caudate lobe
1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein17Portal vein23Caudate lobe26Lateral segment27Medial segment28Anterior segment74Cardia93Gas94Artifact96Diaphragm
Probe position, Left lobe of liver, lateral segment, caudate lobe

Left lobe of liver, lateral segment, caudate lobe

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

AnatomyCaudate lobe anatomy diagram, Left lobe of liver, lateral segment, caudate lobe
UltrasoundCaudate lobe ultrasound image, Left lobe of liver, lateral segment, caudate lobe
1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein17Portal vein23Caudate lobe26Lateral segment27Medial segment28Anterior segment71Fundus of stomach74Cardia93Gas94Artifact96Diaphragm
Probe position, Medial and anterior hepatic segments, hepatic veins, caudate lobe

Medial and anterior hepatic segments, hepatic veins, caudate lobe

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

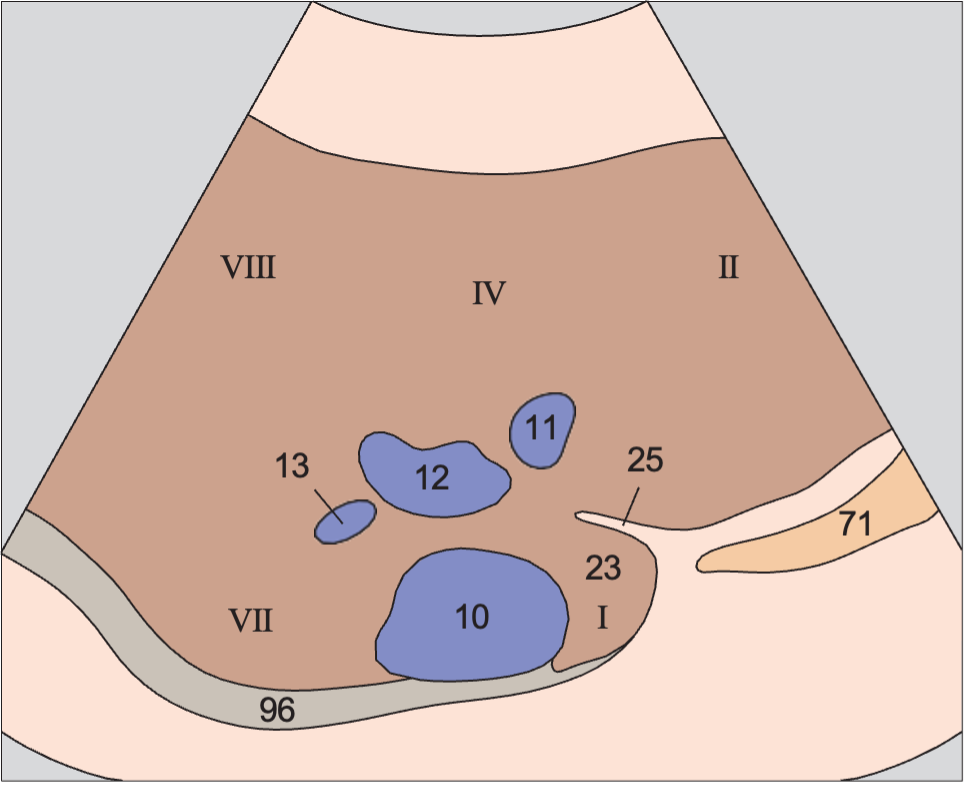

AnatomyCaudate lobe anatomy diagram, Medial and anterior hepatic segments, hepatic veins, caudate lobe

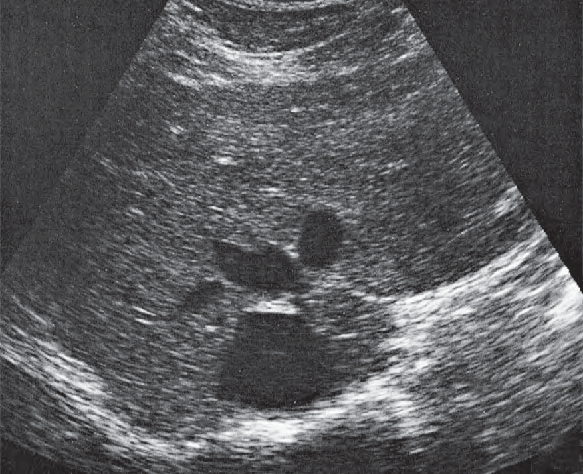

UltrasoundCaudate lobe ultrasound image, Medial and anterior hepatic segments, hepatic veins, caudate lobe
10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein23Caudate lobe25Ligamentum venosum71Fundus of stomach96Diaphragm
Probe position, Medial and anterior hepatic segments, hepatic veins, caudate lobe

Medial and anterior hepatic segments, hepatic veins, caudate lobe

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

AnatomyCaudate lobe anatomy diagram, Medial and anterior hepatic segments, hepatic veins, caudate lobe
UltrasoundCaudate lobe ultrasound image, Medial and anterior hepatic segments, hepatic veins, caudate lobe
10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein23Caudate lobe25Ligamentum venosum71Fundus of stomach93Gas
Probe position, Medial and anterior hepatic segments, caudate lobe

Medial and anterior hepatic segments, caudate lobe

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

AnatomyCaudate lobe anatomy diagram, Medial and anterior hepatic segments, caudate lobe
UltrasoundCaudate lobe ultrasound image, Medial and anterior hepatic segments, caudate lobe
10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein23Caudate lobe25Ligamentum venosum71Fundus of stomach93Gas
Probe position, Medial and anterior hepatic segments, left portal vein branch, caudate lobe

Medial and anterior hepatic segments, left portal vein branch, caudate lobe

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

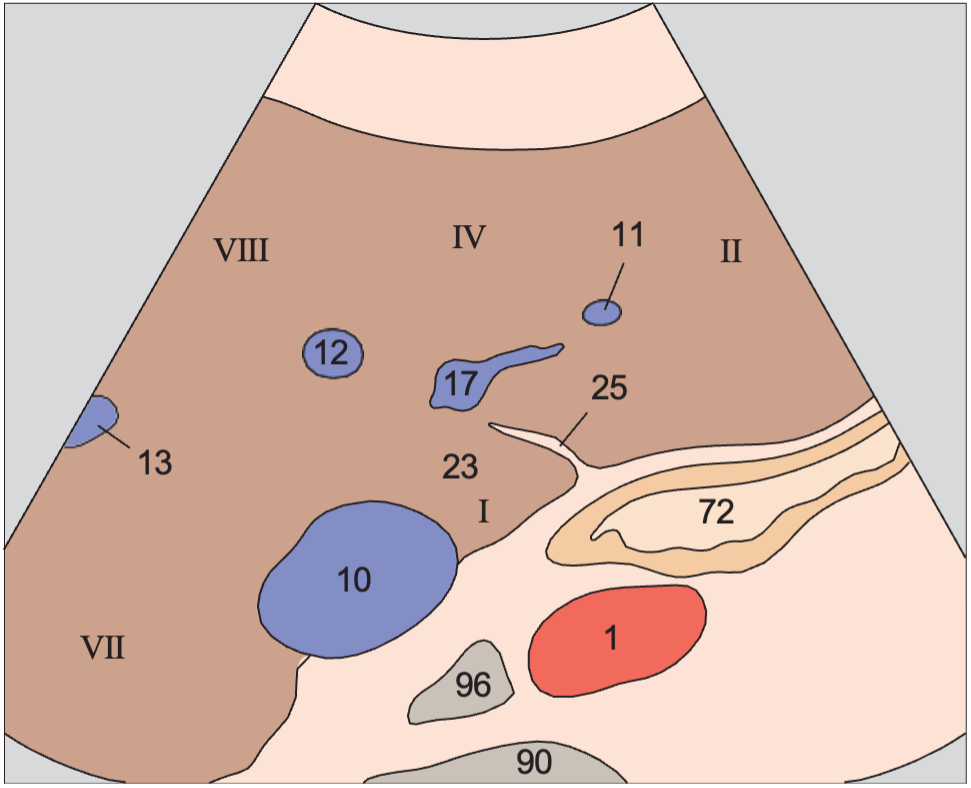

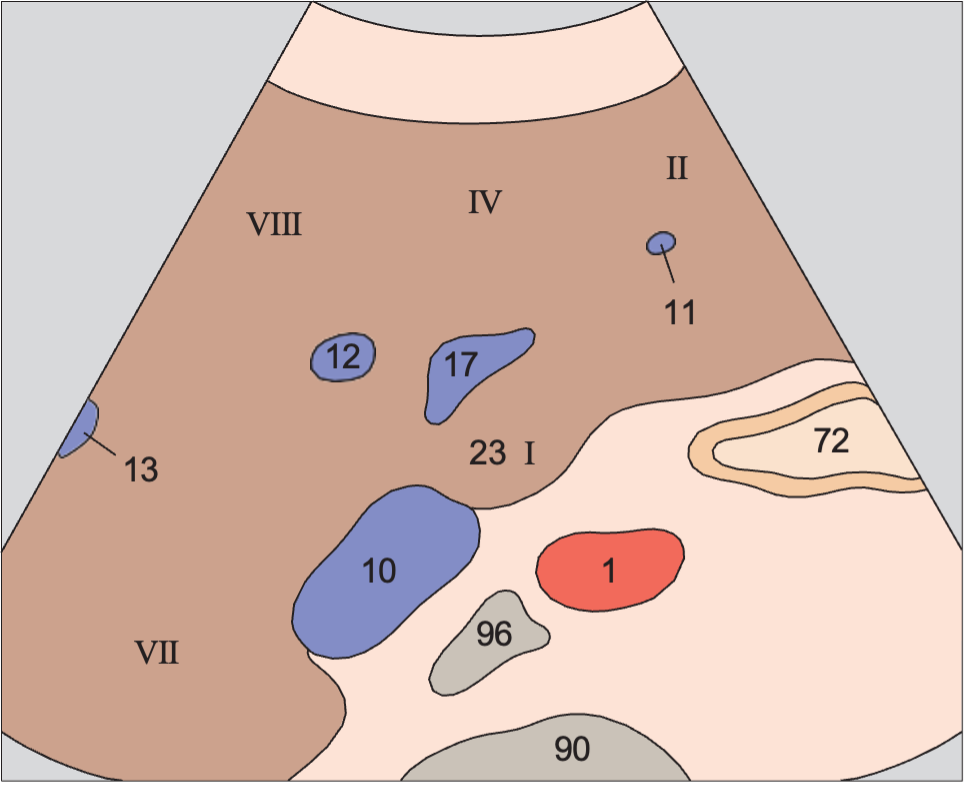

AnatomyCaudate lobe anatomy diagram, Medial and anterior hepatic segments, left portal vein branch, caudate lobe

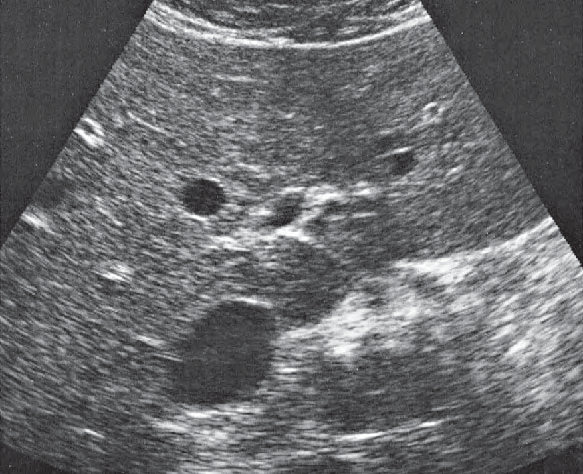

UltrasoundCaudate lobe ultrasound image, Medial and anterior hepatic segments, left portal vein branch, caudate lobe
1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein17Portal vein23Caudate lobe25Ligamentum venosum72Body of stomach96Diaphragm
Probe position, Medial and anterior hepatic segments, left portal vein branch, caudate lobe

Medial and anterior hepatic segments, left portal vein branch, caudate lobe

Liver / Central Portions of the Liver in Transverse Sections · Transverse plane

AnatomyCaudate lobe anatomy diagram, Medial and anterior hepatic segments, left portal vein branch, caudate lobe

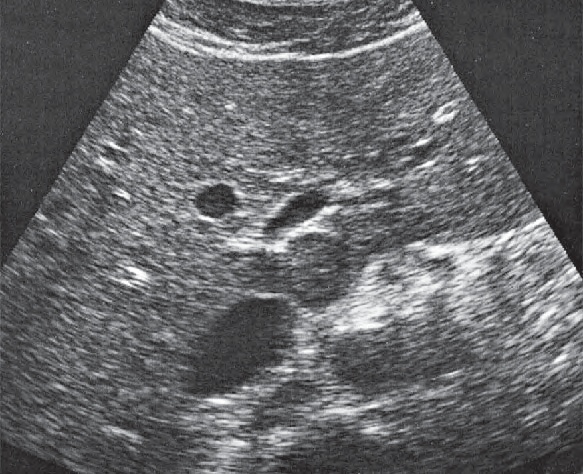

UltrasoundCaudate lobe ultrasound image, Medial and anterior hepatic segments, left portal vein branch, caudate lobe
1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein17Portal vein23Caudate lobe25Ligamentum venosum72Body of stomach90Spinal column96Diaphragm
Probe position, Head of pancreas, bile duct

Head of pancreas, bile duct

Pancreas / Pancreas in Longitudinal Sections · Longitudinal plane

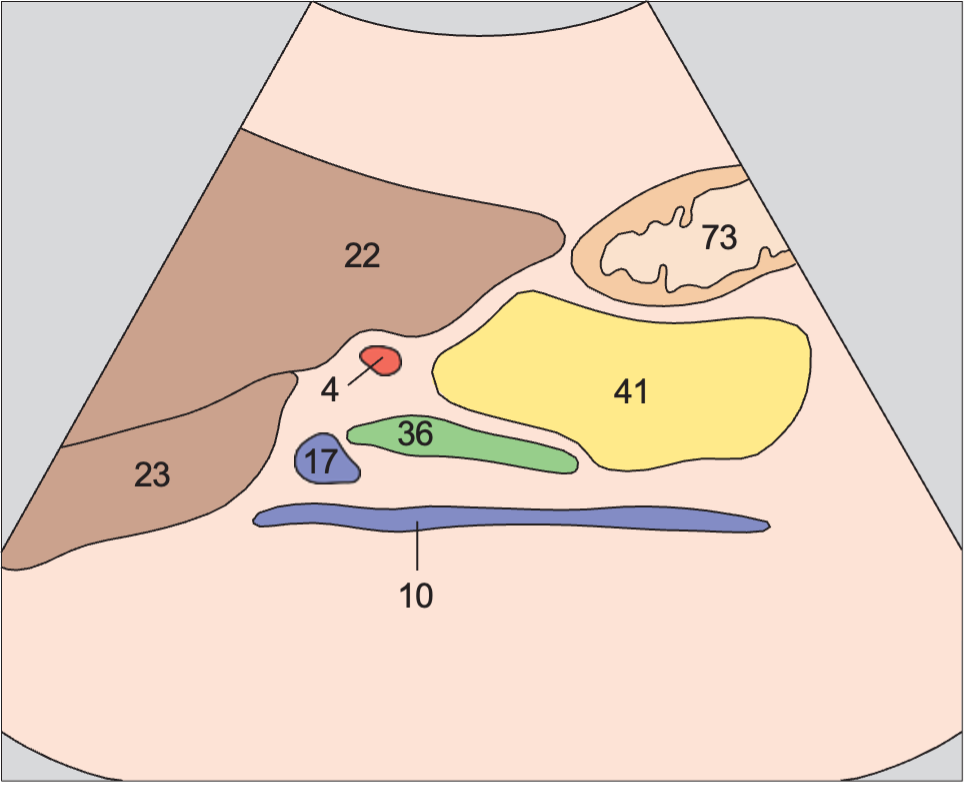

AnatomyCaudate lobe anatomy diagram, Head of pancreas, bile duct

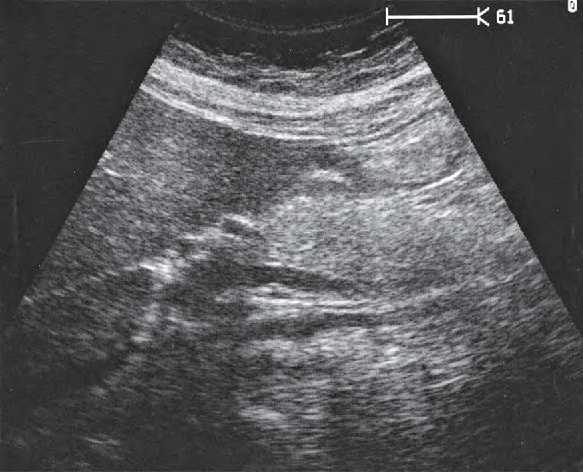

UltrasoundCaudate lobe ultrasound image, Head of pancreas, bile duct
4Hepatic artery10Vena cava17Portal vein22Quadrate lobe23Caudate lobe36Bile duct41Head of pancreas73Antrum of stomach
Probe position, Head of pancreas, superior mesenteric vein, uncinate process

Head of pancreas, superior mesenteric vein, uncinate process

Pancreas / Pancreas in Longitudinal Sections · Longitudinal plane

AnatomyCaudate lobe anatomy diagram, Head of pancreas, superior mesenteric vein, uncinate process
UltrasoundCaudate lobe ultrasound image, Head of pancreas, superior mesenteric vein, uncinate process
4Hepatic artery8Right renal artery10Vena cava17Portal vein19Superior mesenteric vein22Quadrate lobe23Caudate lobe41Head of pancreas44Uncinate process90Spinal column94Artifact
Probe position, Pylorus, pancreas, liver

Pylorus, pancreas, liver

Stomach / Upper Abdominal Longitudinal Scans of the Stomach from Left to Right · Longitudinal plane

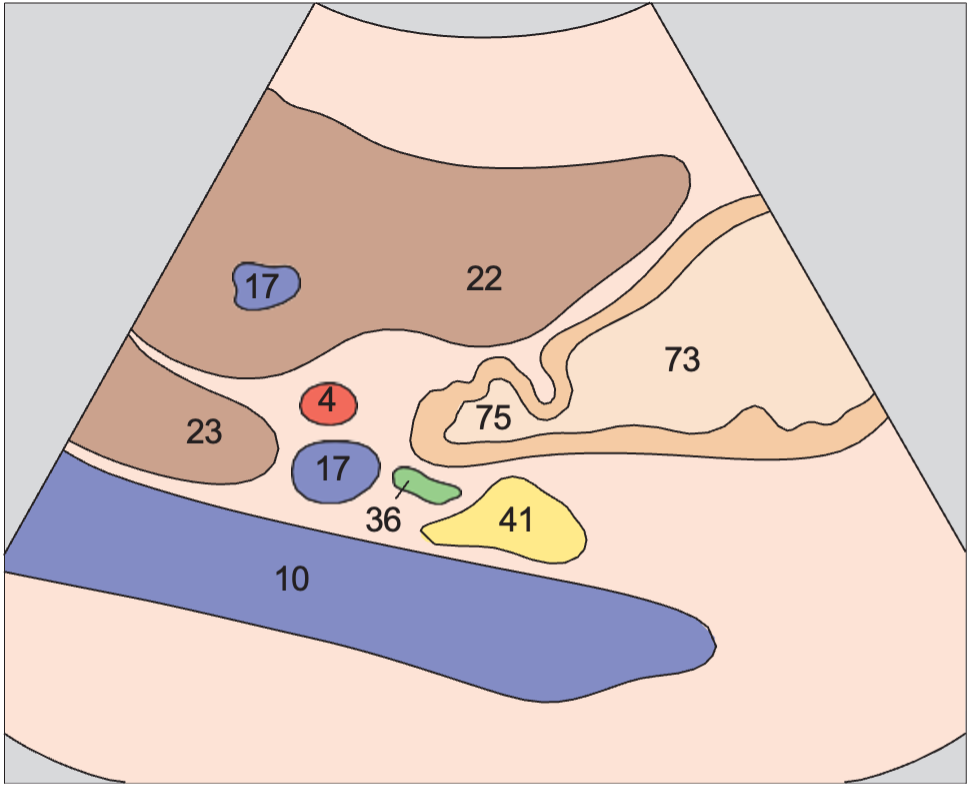

AnatomyCaudate lobe anatomy diagram, Pylorus, pancreas, liver

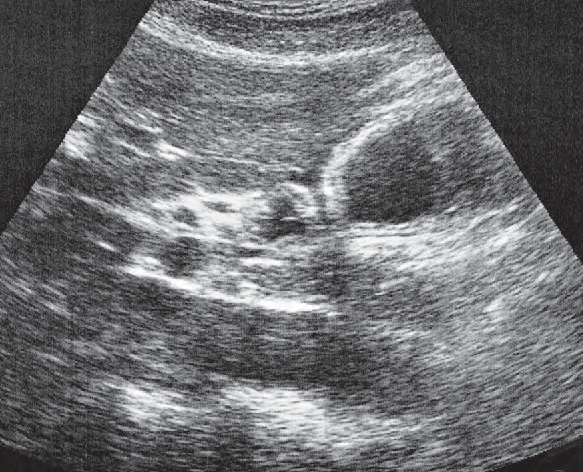

UltrasoundCaudate lobe ultrasound image, Pylorus, pancreas, liver
4Hepatic artery10Vena cava17Portal vein22Quadrate lobe23Caudate lobe36Bile duct41Head of pancreas73Antrum of stomach75Duodenal bulb

Anatomy diagrams, ultrasound images and probe positions are part of the Ultrasound Anatomy atlas. Colours follow the atlas legend, grouping vessels, organs and other structures by type.
