Lateral Segment Ultrasound Anatomy

3 min read

Lateral segment ultrasound image

Lateral segment ultrasound anatomy is presented here as a labeled cross-sectional atlas. Every view pairs a color-coded anatomy diagram with the matching real ultrasound image, so you can learn the expected shape and position of the lateral segment and then recognise it on a real scan.

In the atlas legend the lateral segment belongs to the liver group and is shown in a consistent colour wherever it appears. The small body marker on each card shows where the transducer sits for that view, which makes it easier to reproduce the image at the bedside.

Lateral segment appears in 10 labeled views in this atlas. Each card below shows the anatomy diagram, the real ultrasound image and the probe position for that scan. Coloured dots list every structure labeled in the view, with lateral segment highlighted.

10Scan views

Lateral segment across the atlas

Probe position, Left lobe of liver, lateral segment, subsegments II and III

Left lobe of liver, lateral segment, subsegments II and III

Liver / Liver in Longitudinal Sections · Longitudinal plane

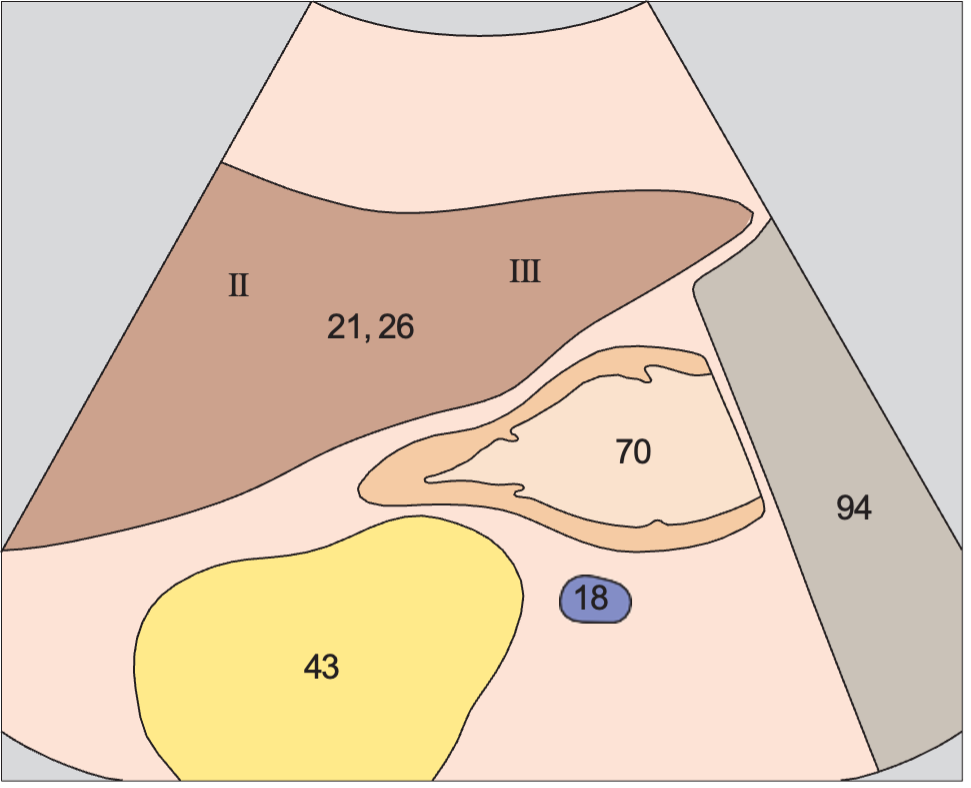

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, subsegments II and III

Lateral segment ultrasound image, Left lobe of liver, lateral segment, subsegments II and III

18Splenic vein21Left lobe of liver26Lateral segment43Tail of pancreas70Stomach94Artifact

Probe position, Posterior segment, lateral portions of liver, kidney

Posterior segment, lateral portions of liver, kidney

Liver / Liver in Longitudinal Sections · Longitudinal plane

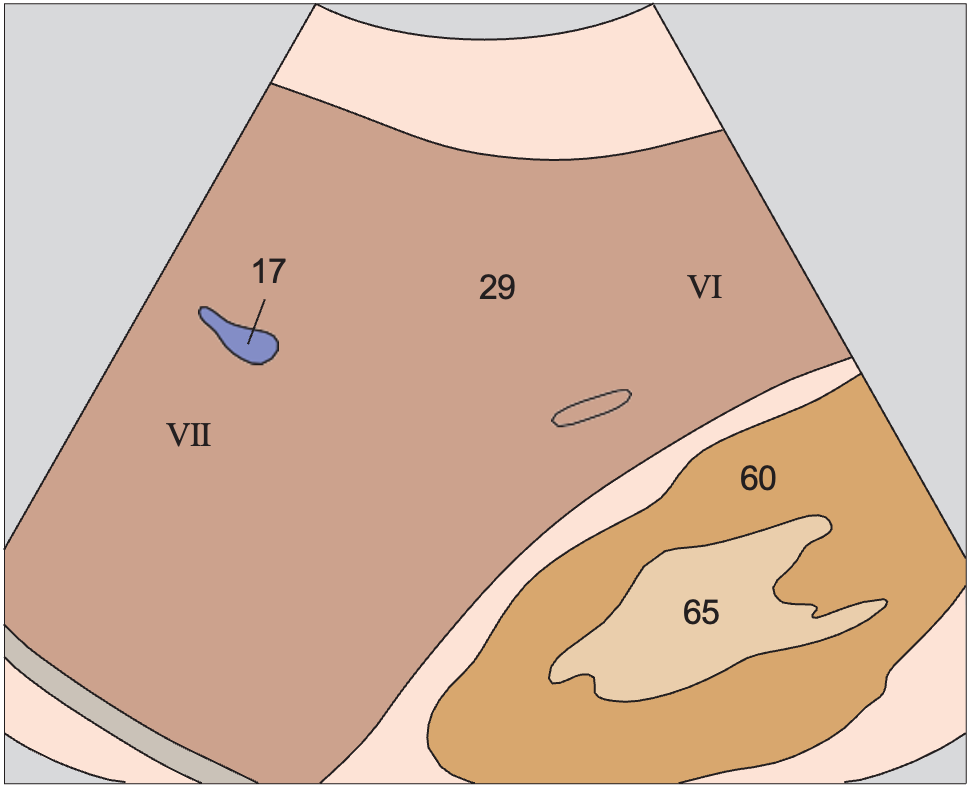

Lateral segment anatomy diagram, Posterior segment, lateral portions of liver, kidney

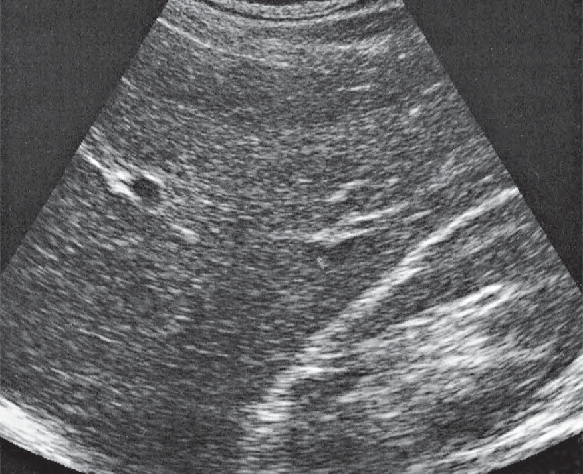

Lateral segment ultrasound image, Posterior segment, lateral portions of liver, kidney

26Lateral segment96Diaphragm98Heart

Probe position, Left lobe of liver, lateral segment, heart

Left lobe of liver, lateral segment, heart

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

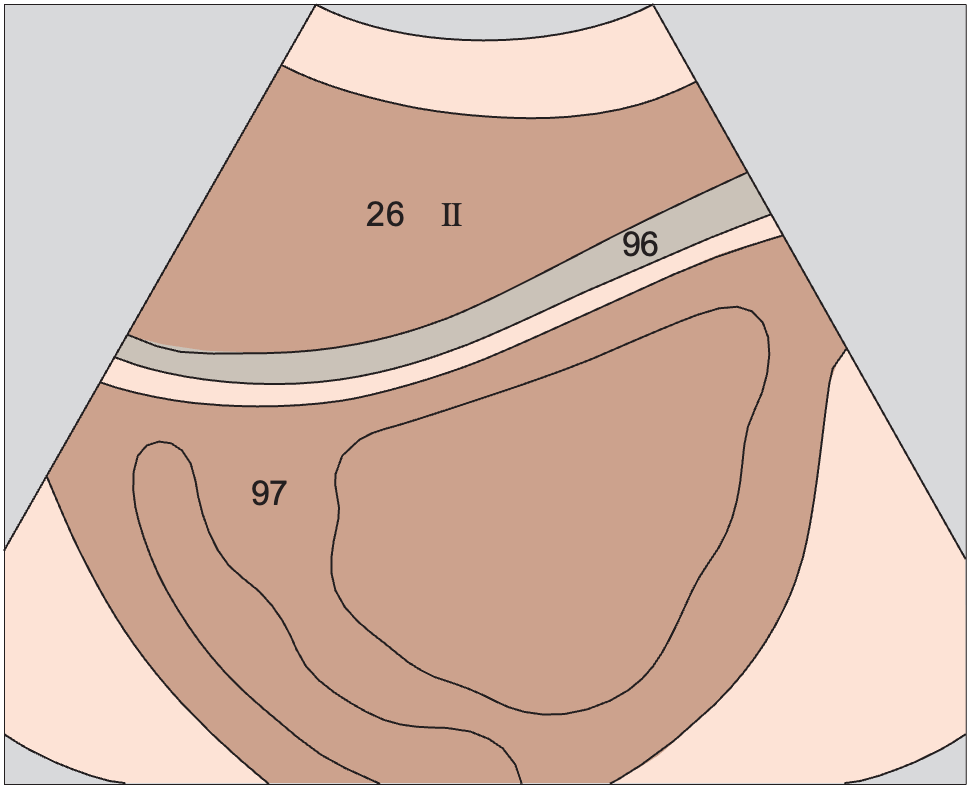

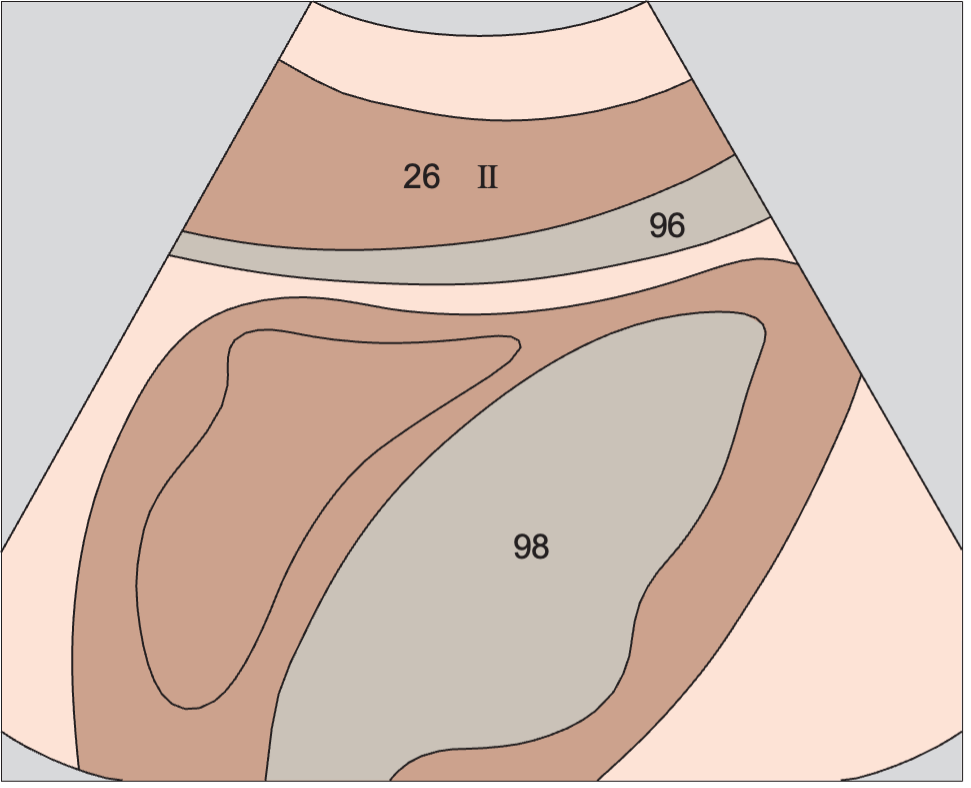

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, heart

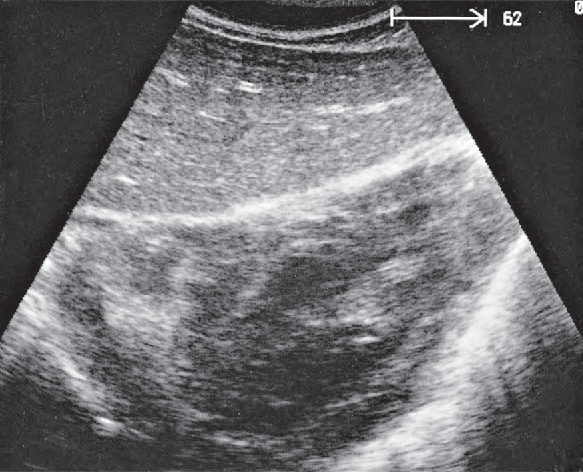

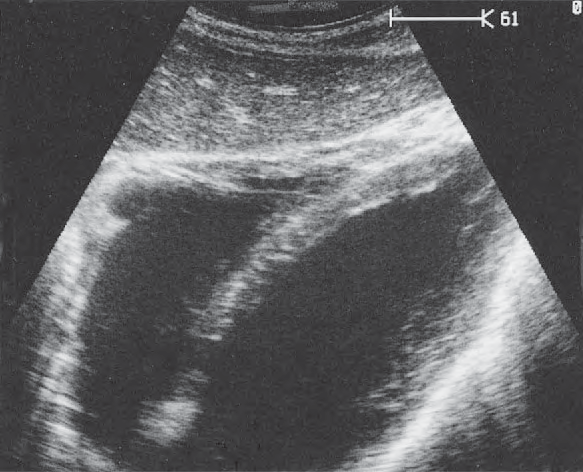

Lateral segment ultrasound image, Left lobe of liver, lateral segment, heart

26Lateral segment96Diaphragm97Pelvic bone

Probe position, Left lobe of liver, lateral segment, heart

Left lobe of liver, lateral segment, heart

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, heart

Lateral segment ultrasound image, Left lobe of liver, lateral segment, heart

10Vena cava11Left hepatic vein12Middle hepatic vein13Right hepatic vein23Caudate lobe25Ligamentum venosum26Lateral segment27Medial segment28Anterior segment29Posterior segment71Fundus of stomach96Diaphragm

Probe position, Left lobe of liver, lateral segment, hepatic veins

Left lobe of liver, lateral segment, hepatic veins

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

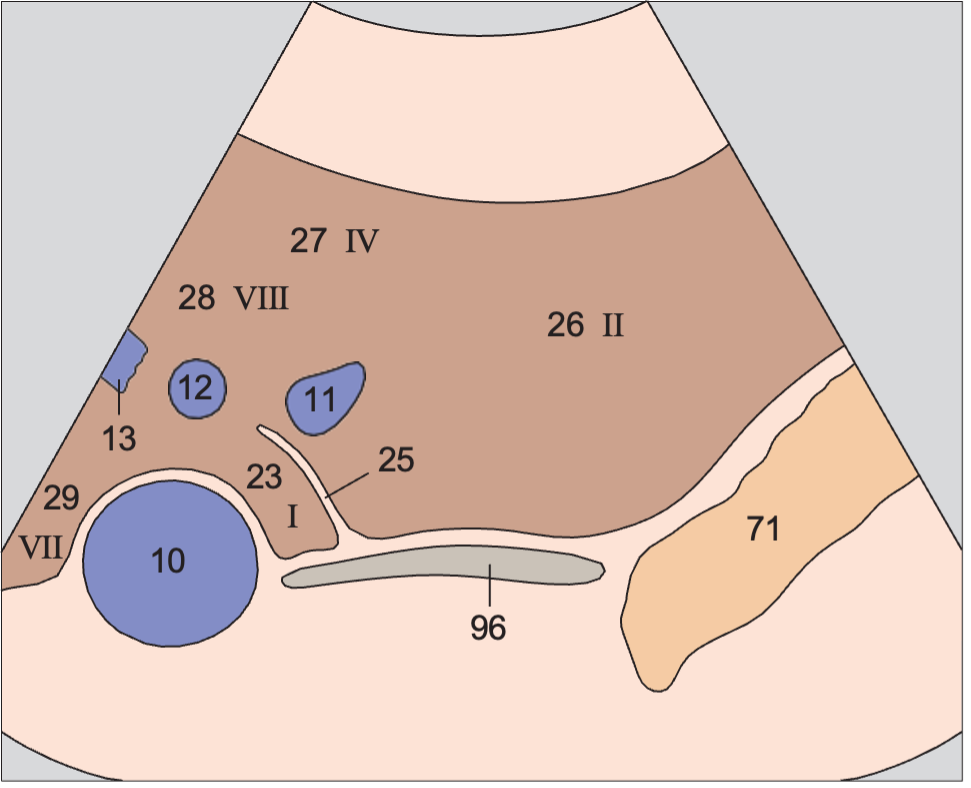

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, hepatic veins

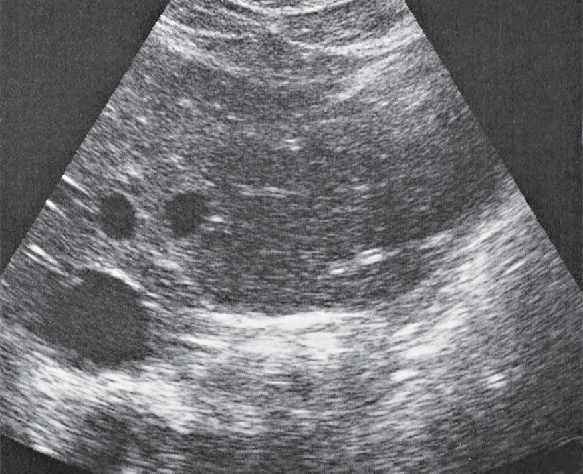

Lateral segment ultrasound image, Left lobe of liver, lateral segment, hepatic veins

10Vena cava11Left hepatic vein12Middle hepatic vein23Caudate lobe25Ligamentum venosum26Lateral segment27Medial segment28Anterior segment71Fundus of stomach93Gas94Artifact

Probe position, Left lobe of liver, lateral segment, caudate lobe

Left lobe of liver, lateral segment, caudate lobe

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

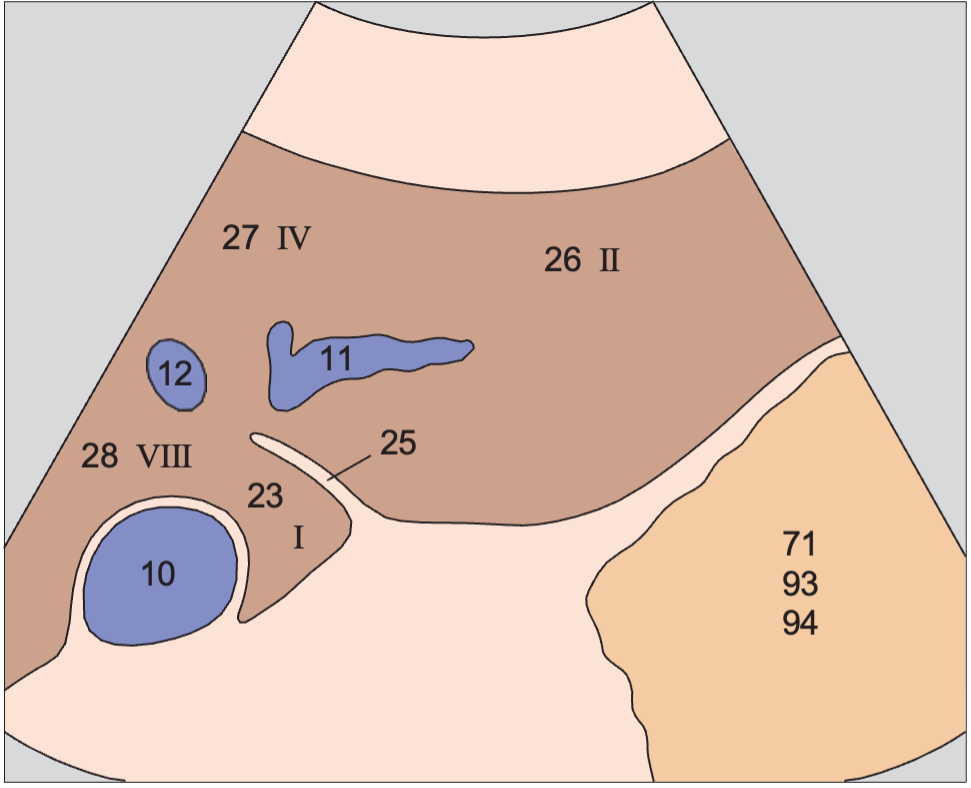

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, caudate lobe

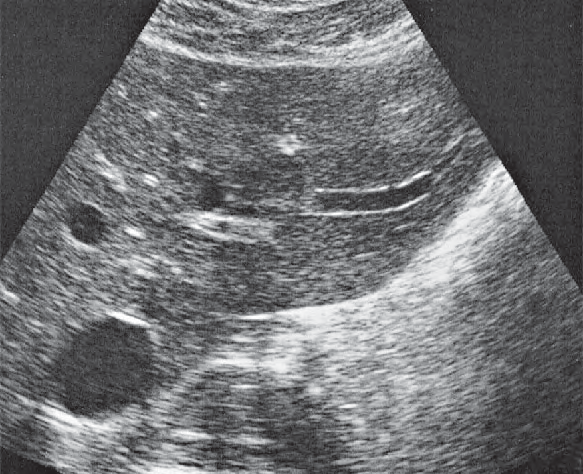

Lateral segment ultrasound image, Left lobe of liver, lateral segment, caudate lobe

1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein17Portal vein23Caudate lobe26Lateral segment27Medial segment28Anterior segment74Cardia93Gas94Artifact96Diaphragm

Probe position, Left lobe of liver, lateral segment, caudate lobe

Left lobe of liver, lateral segment, caudate lobe

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

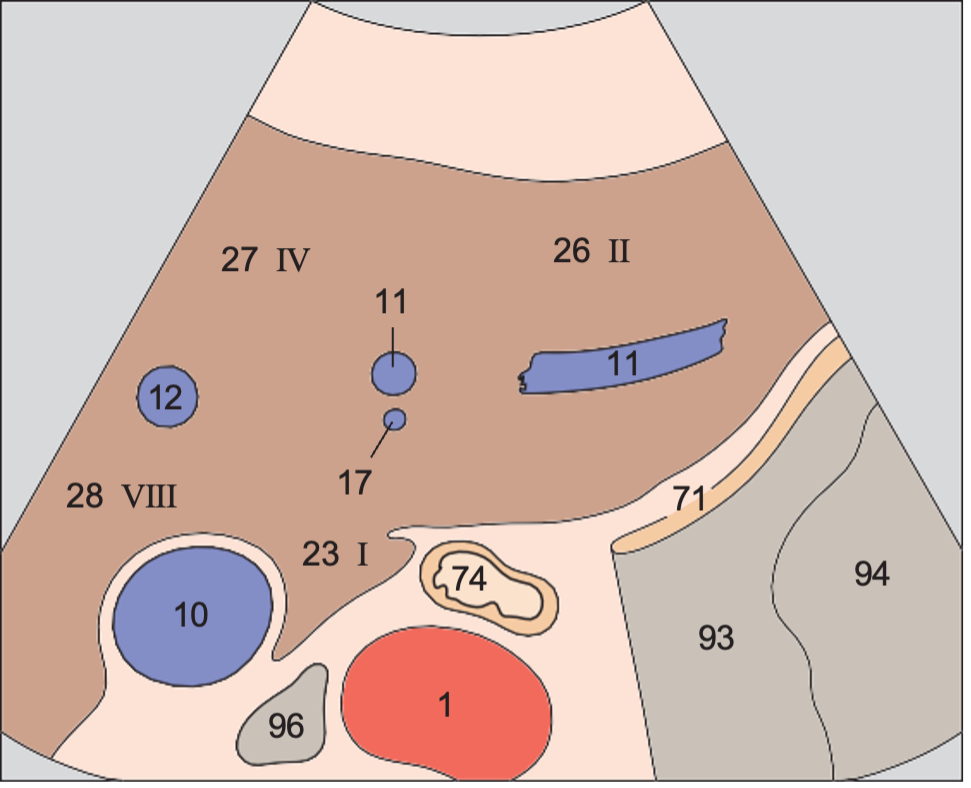

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, caudate lobe

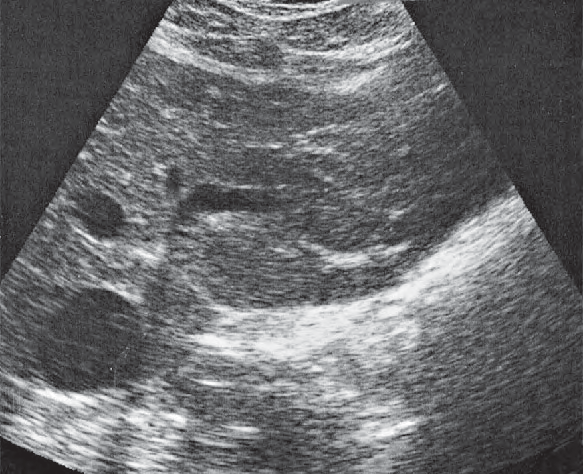

Lateral segment ultrasound image, Left lobe of liver, lateral segment, caudate lobe

1Aorta10Vena cava11Left hepatic vein12Middle hepatic vein17Portal vein23Caudate lobe26Lateral segment27Medial segment28Anterior segment71Fundus of stomach74Cardia93Gas94Artifact96Diaphragm

Probe position, Left lobe of liver, lateral segment, left portal vein branch

Left lobe of liver, lateral segment, left portal vein branch

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

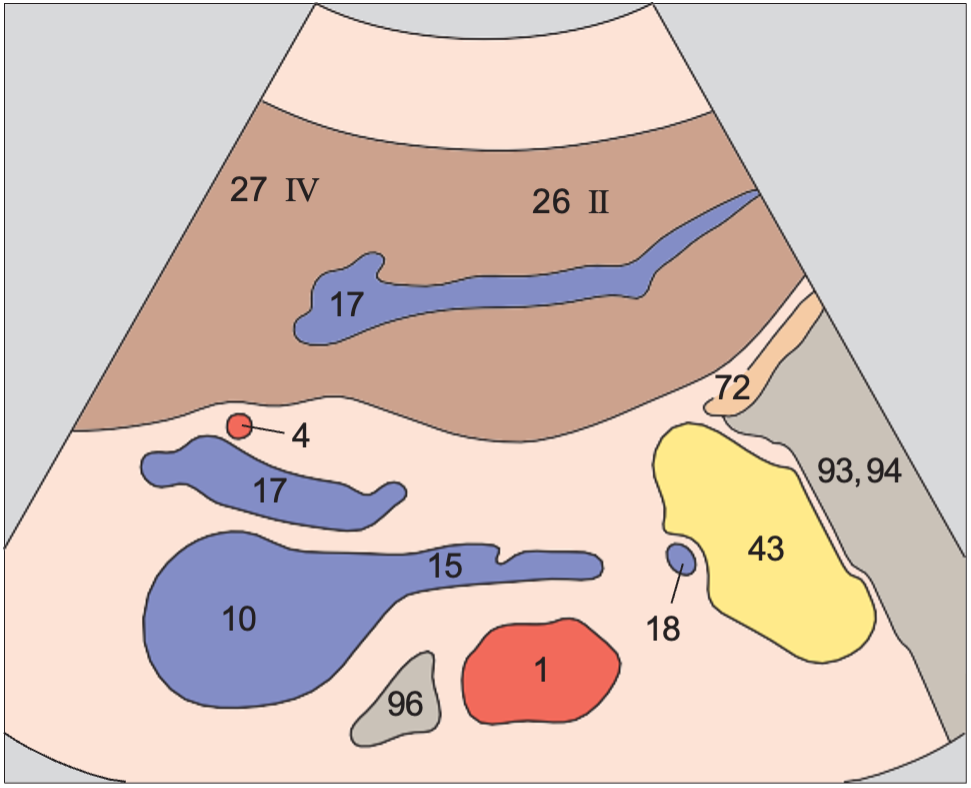

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, left portal vein branch

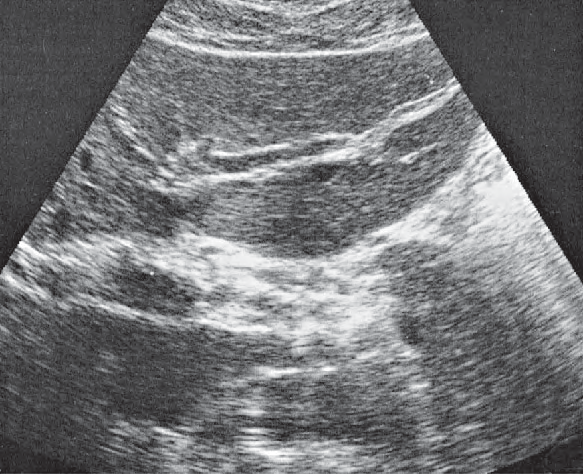

Lateral segment ultrasound image, Left lobe of liver, lateral segment, left portal vein branch

1Aorta4Hepatic artery10Vena cava15Left renal vein17Portal vein18Splenic vein26Lateral segment27Medial segment43Tail of pancreas72Body of stomach93Gas94Artifact96Diaphragm

Probe position, Left lobe of liver, lateral segment, ligamentum teres

Left lobe of liver, lateral segment, ligamentum teres

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

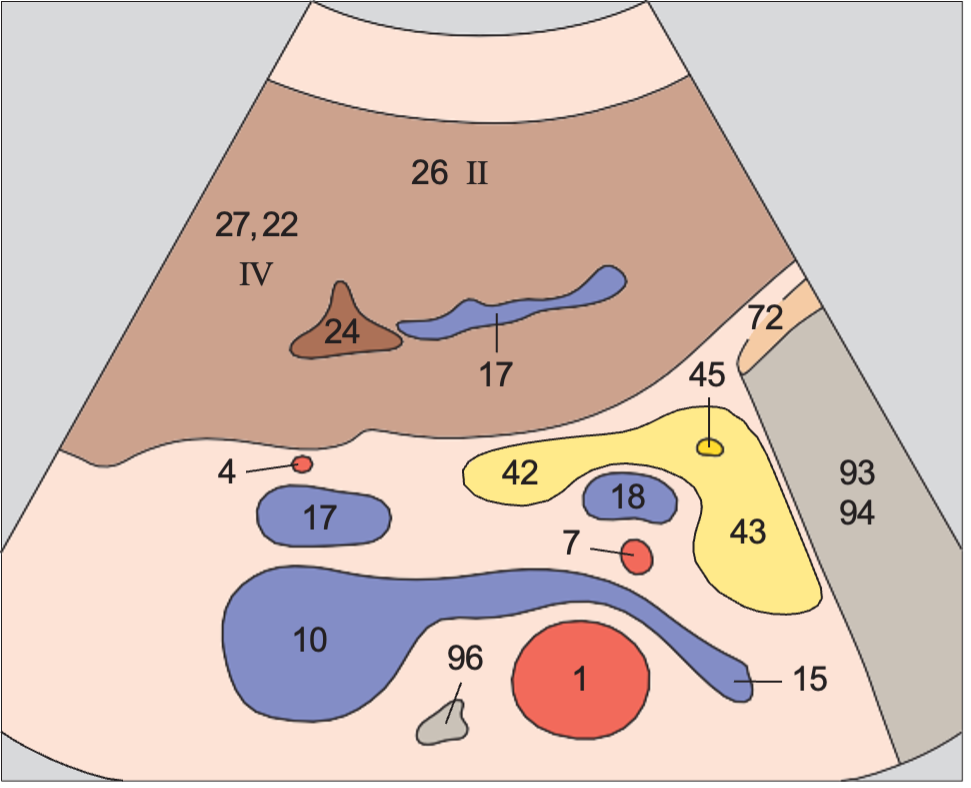

Lateral segment anatomy diagram, Left lobe of liver, lateral segment, ligamentum teres

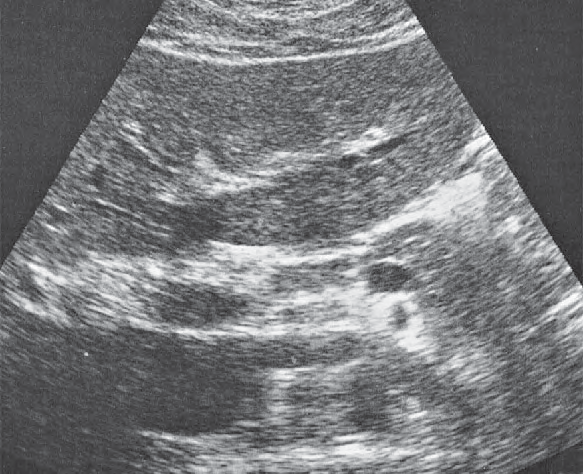

Lateral segment ultrasound image, Left lobe of liver, lateral segment, ligamentum teres

1Aorta4Hepatic artery7Superior mesenteric artery10Vena cava15Left renal vein17Portal vein18Splenic vein22Quadrate lobe24Ligamentum teres26Lateral segment27Medial segment42Body of pancreas43Tail of pancreas45Pancreatic duct72Body of stomach93Gas94Artifact96Diaphragm

Probe position, Left lobe of liver, subsegment III, ligamentum teres

Left lobe of liver, subsegment III, ligamentum teres

Liver / Left Portions of the Liver in Transverse Sections · Transverse plane

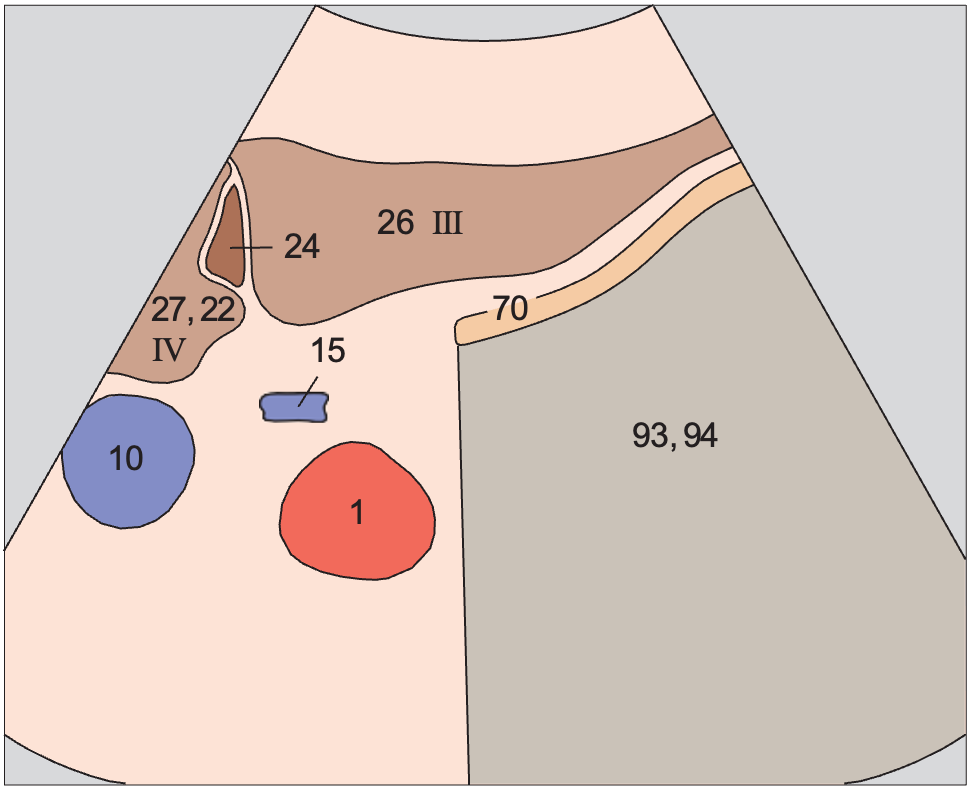

Lateral segment anatomy diagram, Left lobe of liver, subsegment III, ligamentum teres

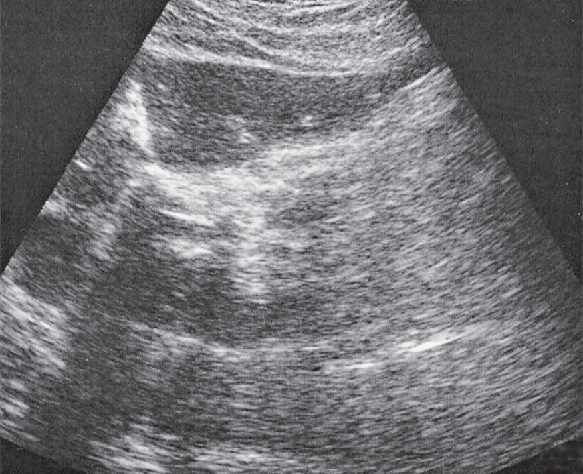

Lateral segment ultrasound image, Left lobe of liver, subsegment III, ligamentum teres

1Aorta10Vena cava15Left renal vein22Quadrate lobe24Ligamentum teres26Lateral segment27Medial segment70Stomach93Gas94Artifact

Anatomy diagrams, ultrasound images and probe positions are part of the Ultrasound Anatomy atlas. Colours follow the atlas legend, grouping vessels, organs and other structures by type.
