Spleen Ultrasound Anatomy
Spleen ultrasound anatomy is presented here as a labeled cross-sectional atlas. Every view pairs a color-coded anatomy diagram with the matching real ultrasound image, so you can learn the expected shape and position of the spleen and then recognise it on a real scan.
In the atlas legend the spleen belongs to the spleen group and is shown in a consistent colour wherever it appears. The small body marker on each card shows where the transducer sits for that view, which makes it easier to reproduce the image at the bedside.
Spleen across the atlas

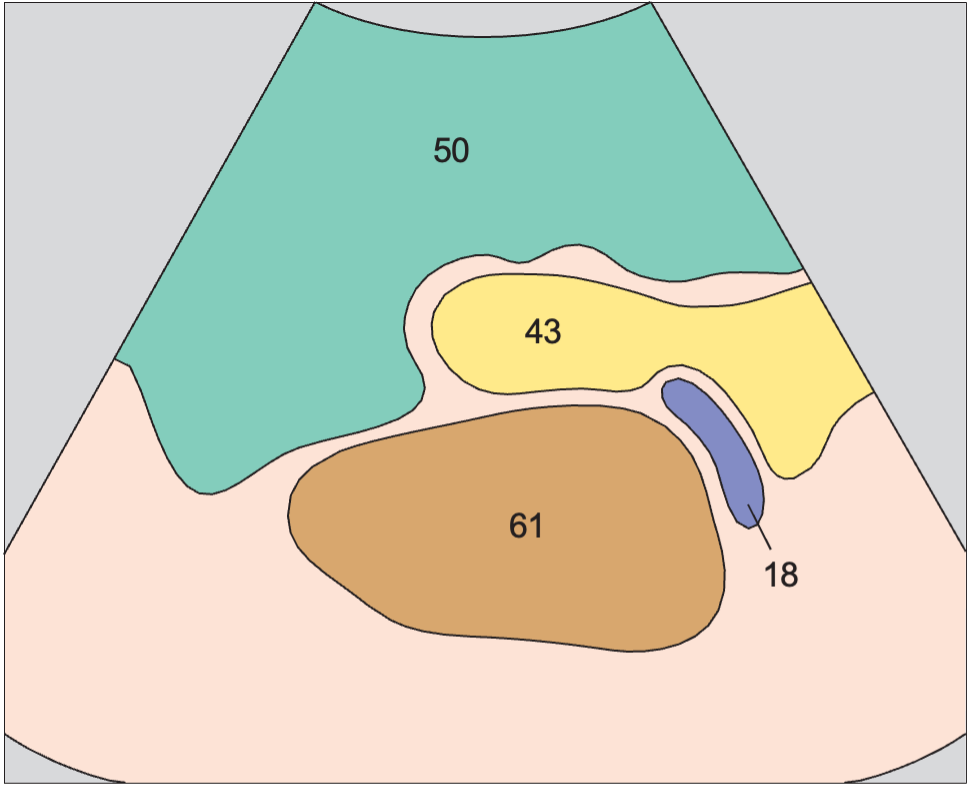

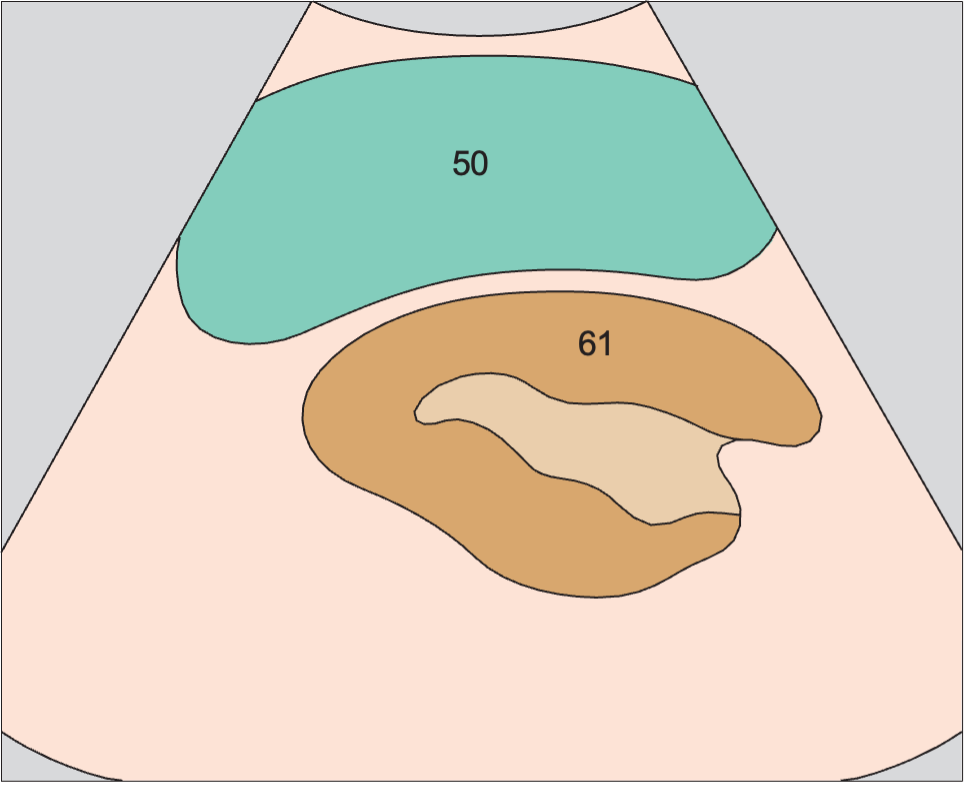

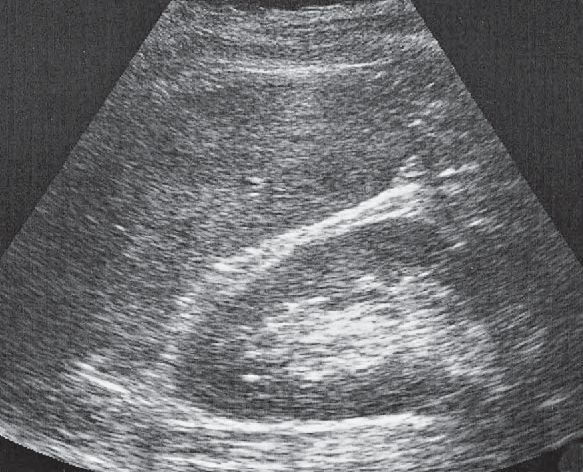

Scan posterior to tail of pancreas, spleen, kidney
Pancreas / Transsplenic View of the Tail of the Pancreas in Longitudinal Sections · Longitudinal plane

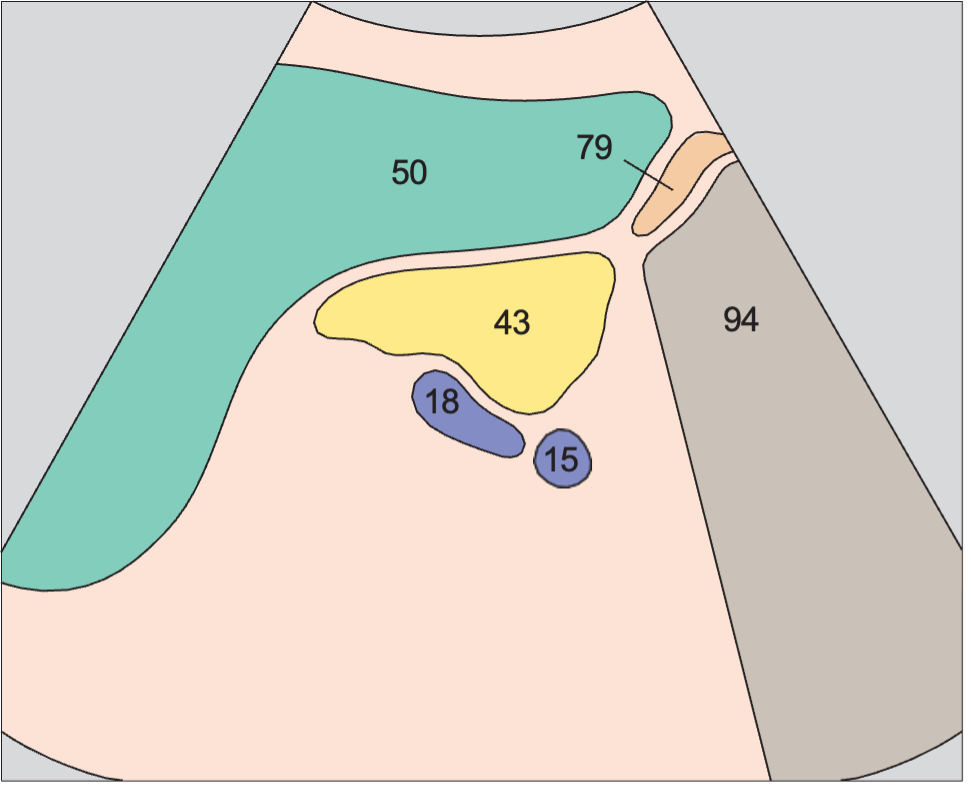

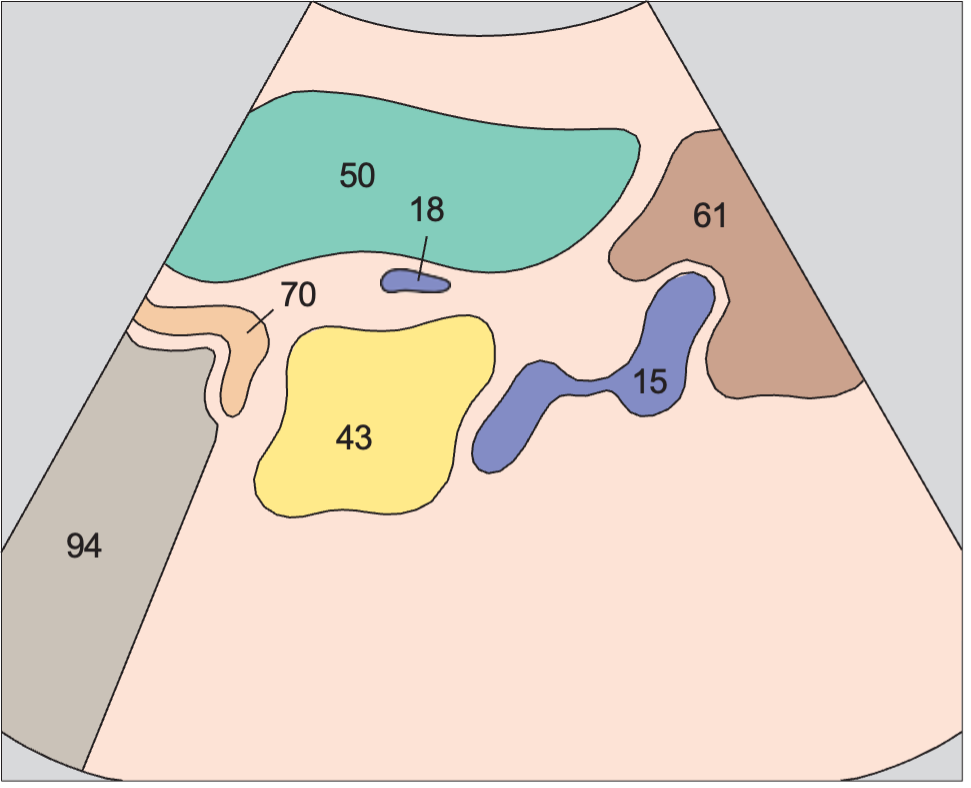

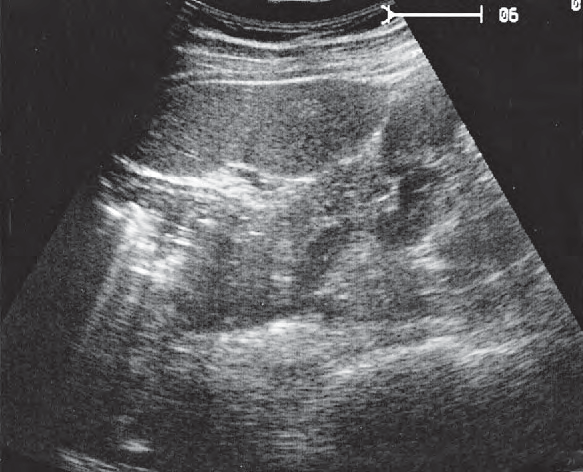

Spleen, tail of pancreas, kidney
Pancreas / Transsplenic View of the Tail of the Pancreas in Longitudinal Sections · Longitudinal plane

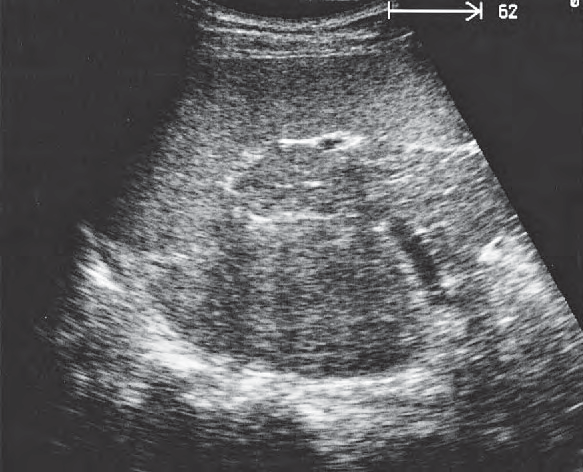

Spleen, tail of pancreas, kidney
Pancreas / Transsplenic View of the Tail of the Pancreas in Longitudinal Sections · Longitudinal plane

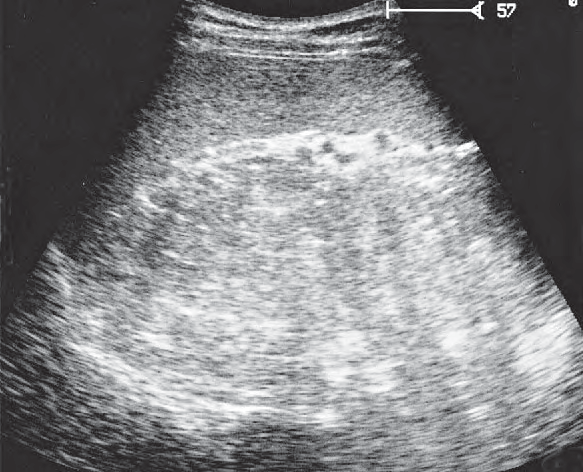

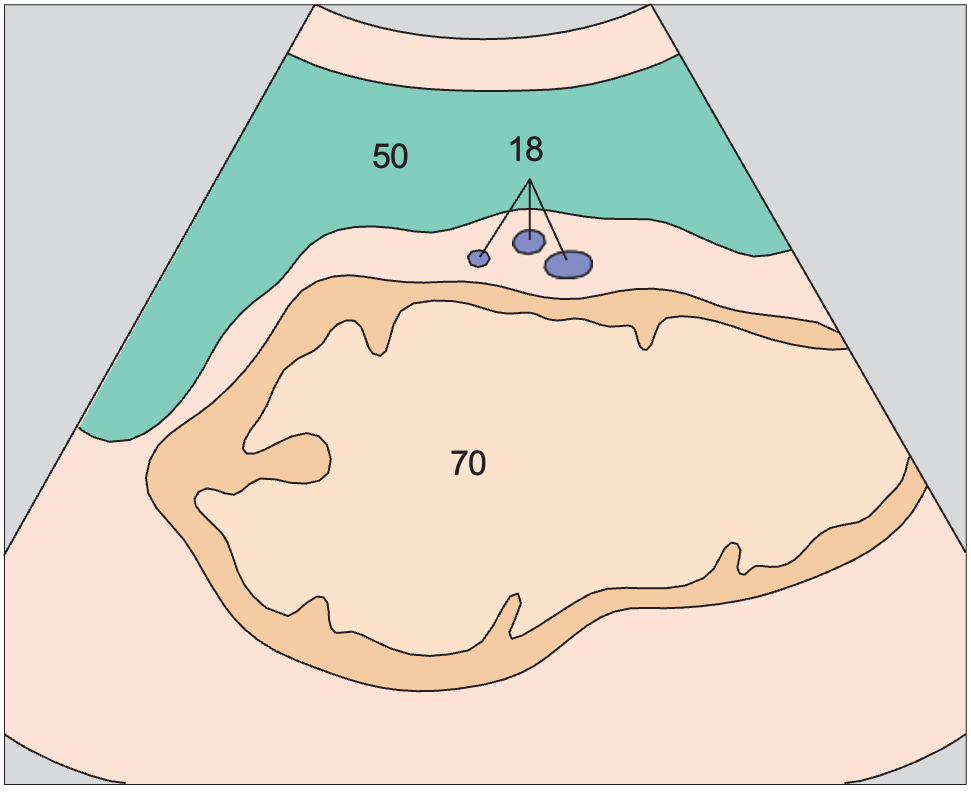

Scan anterior to tail of pancreas, spleen, stomach
Pancreas / Transsplenic View of the Tail of the Pancreas in Longitudinal Sections · Longitudinal plane
Spleen, tail of pancreas, kidney
Pancreas / Transsplenic View of the Tail of the Pancreas in Transverse Sections · Transverse plane

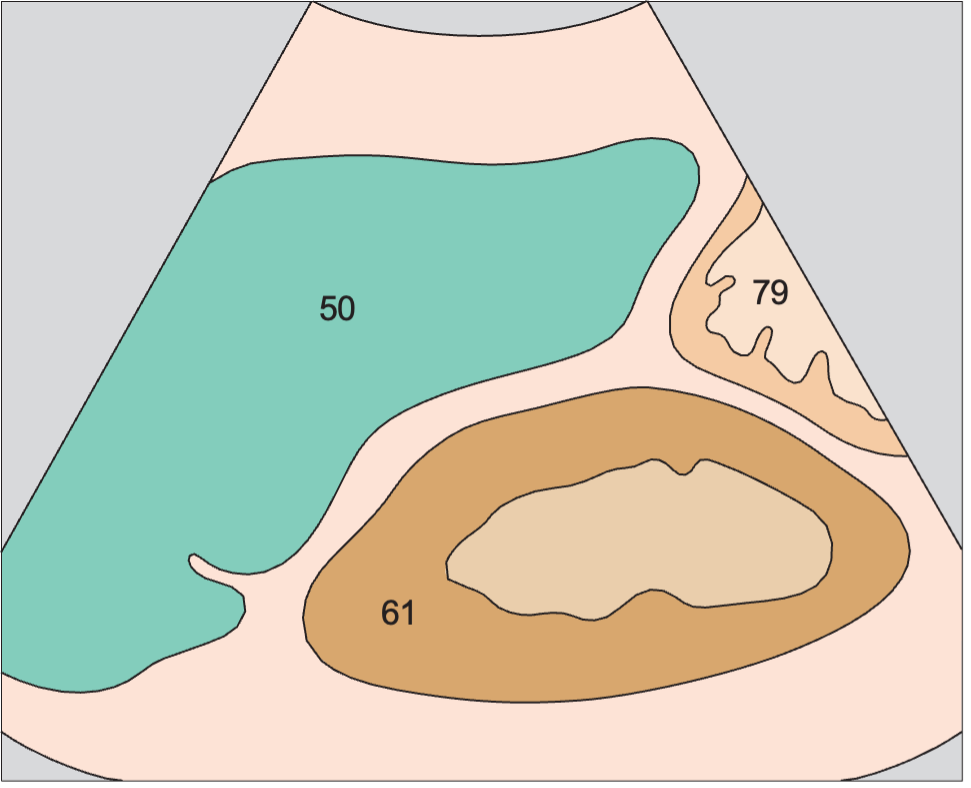

Spleen, kidney
Spleen / Longitudinal Flank Scans of the Spleen · Longitudinal plane

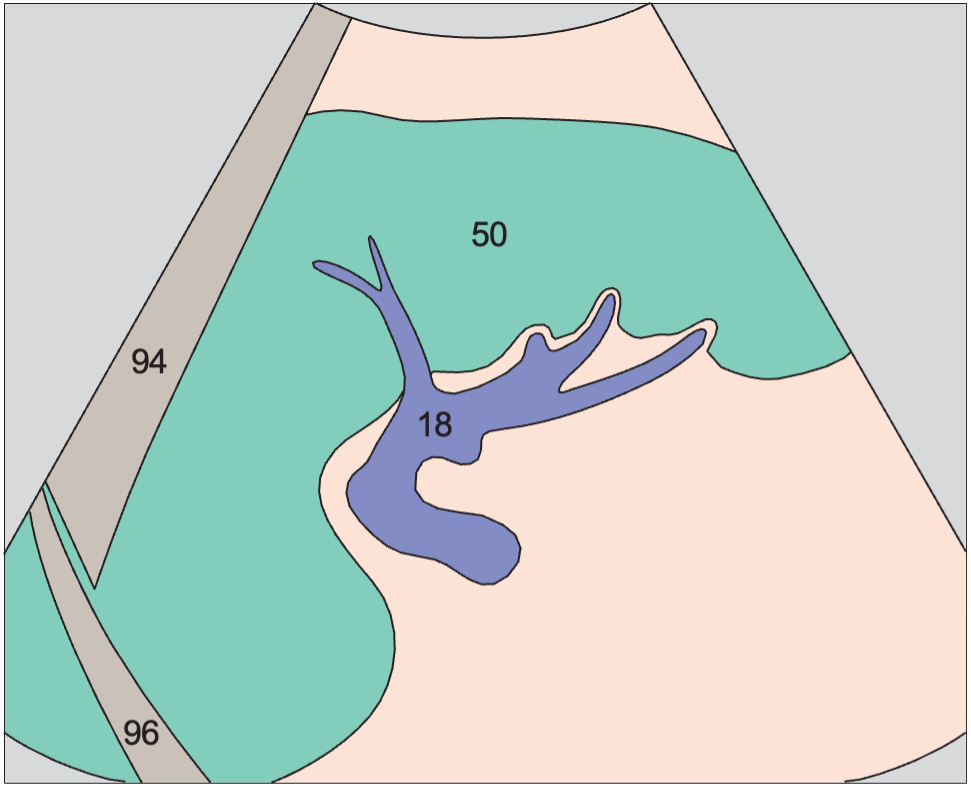

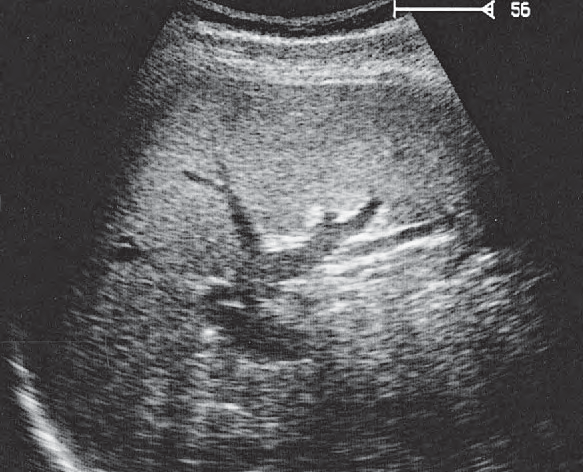

Splenic hilum, splenic vein
Spleen / Longitudinal Flank Scans of the Spleen · Longitudinal plane

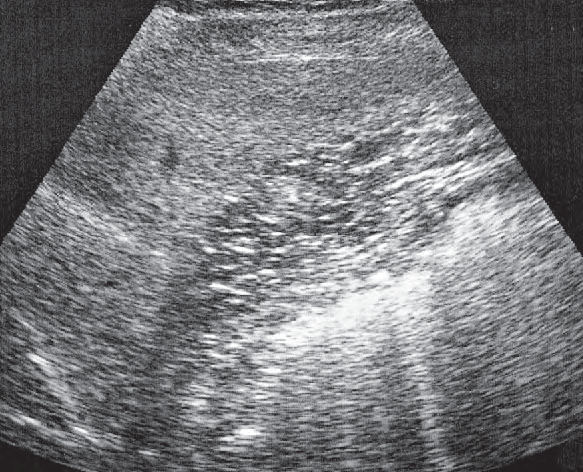

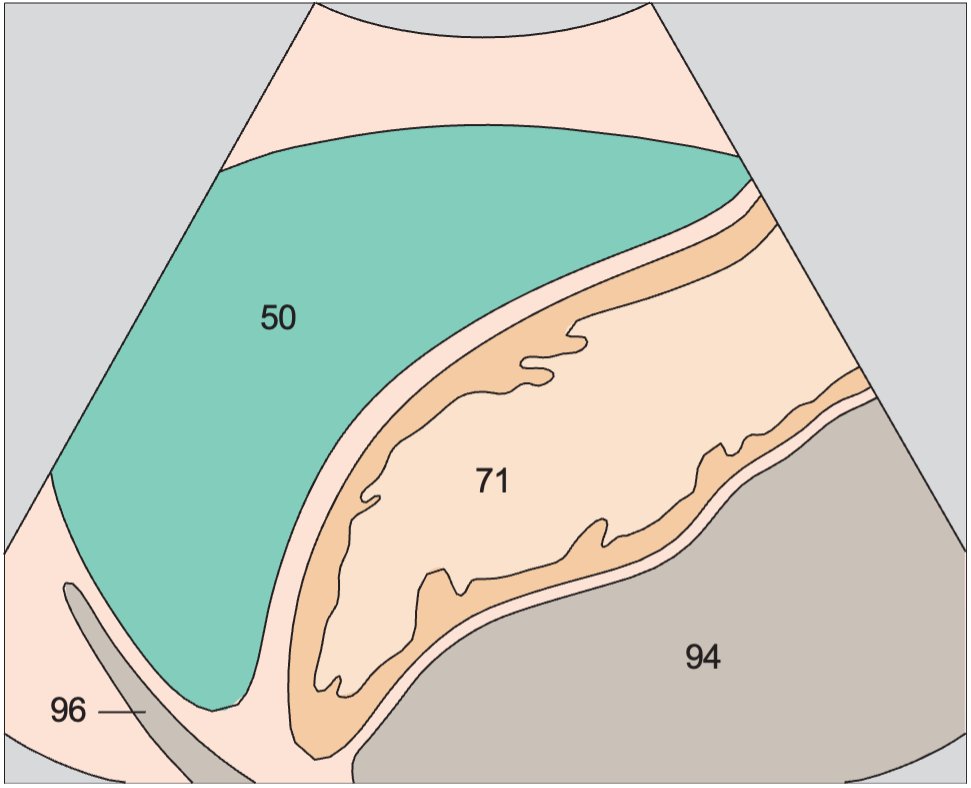

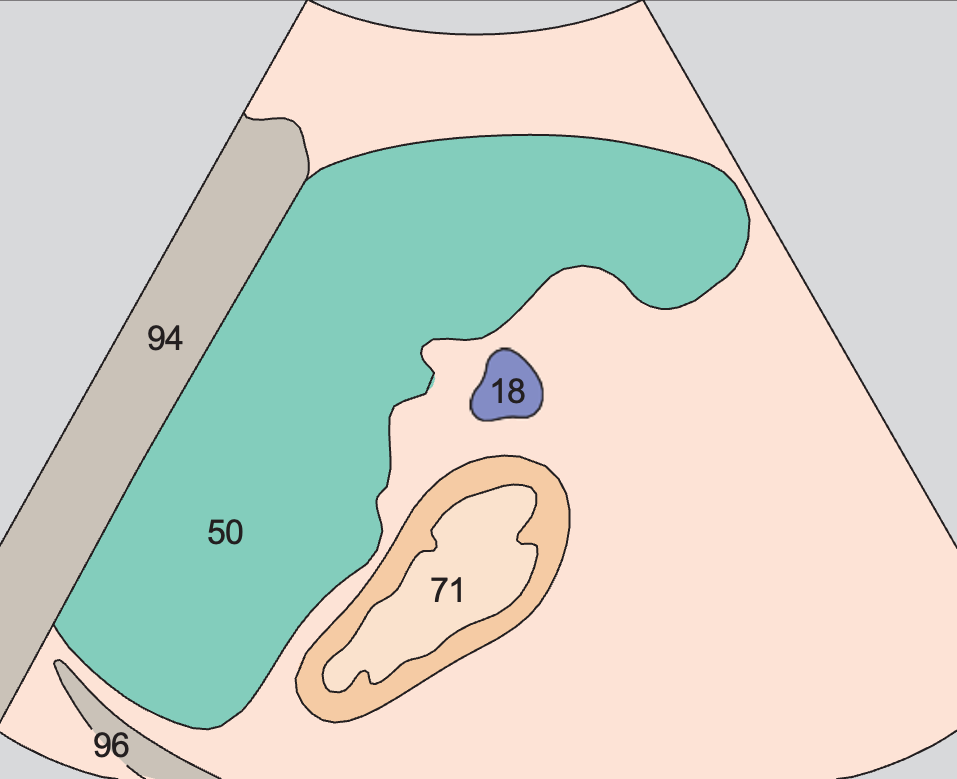

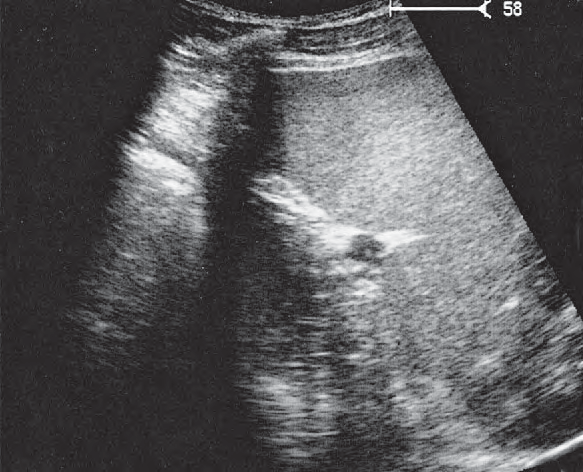

Spleen, stomach
Spleen / Longitudinal Flank Scans of the Spleen · Longitudinal plane

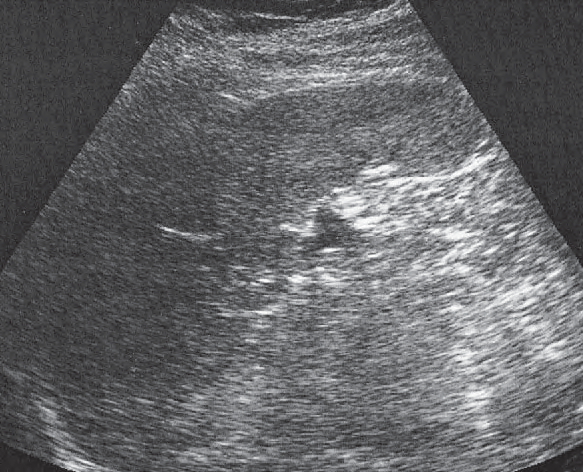

Spleen, stomach
Spleen / Longitudinal Flank Scans of the Spleen · Longitudinal plane

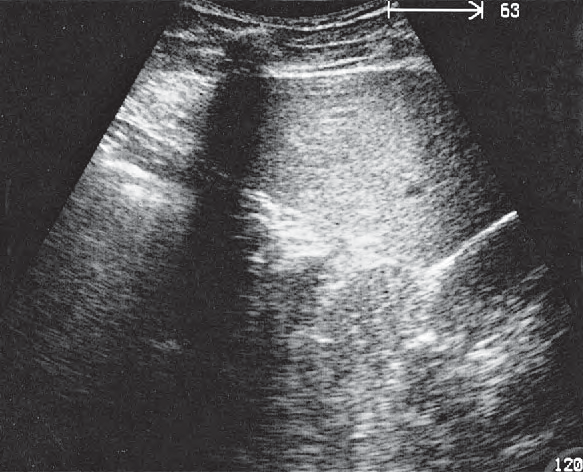

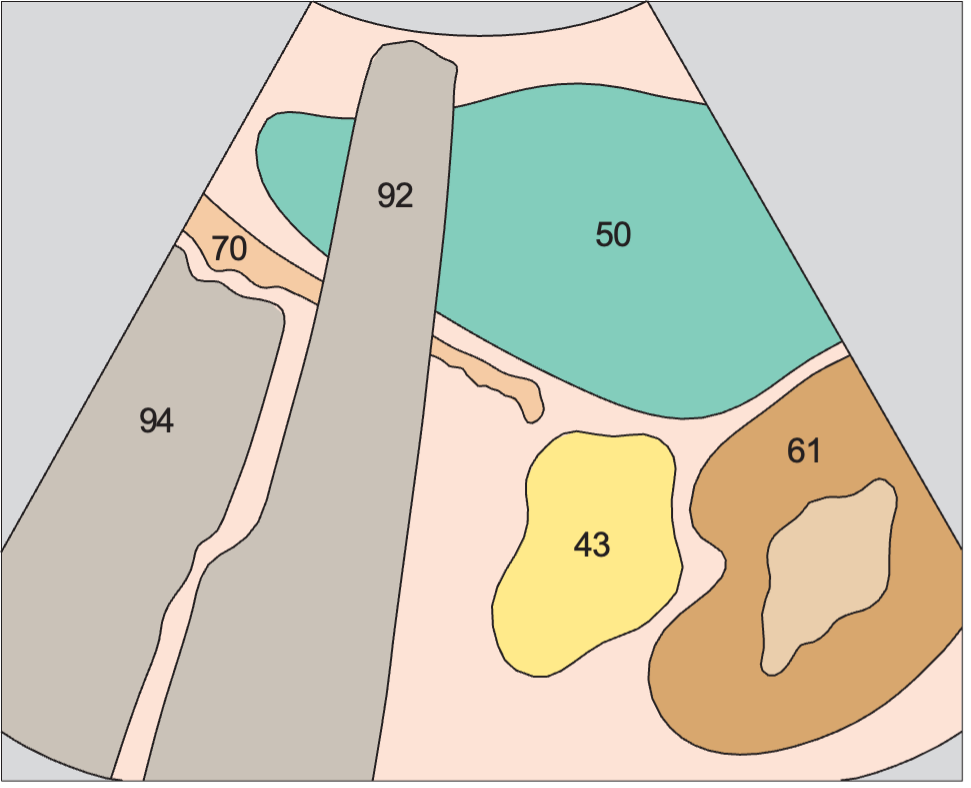

Spleen, kidney, stomach
Spleen / Transverse Flank Scans of the Spleen · Transverse plane

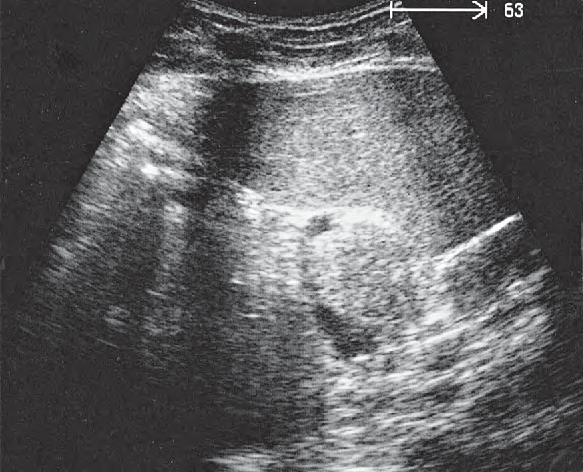

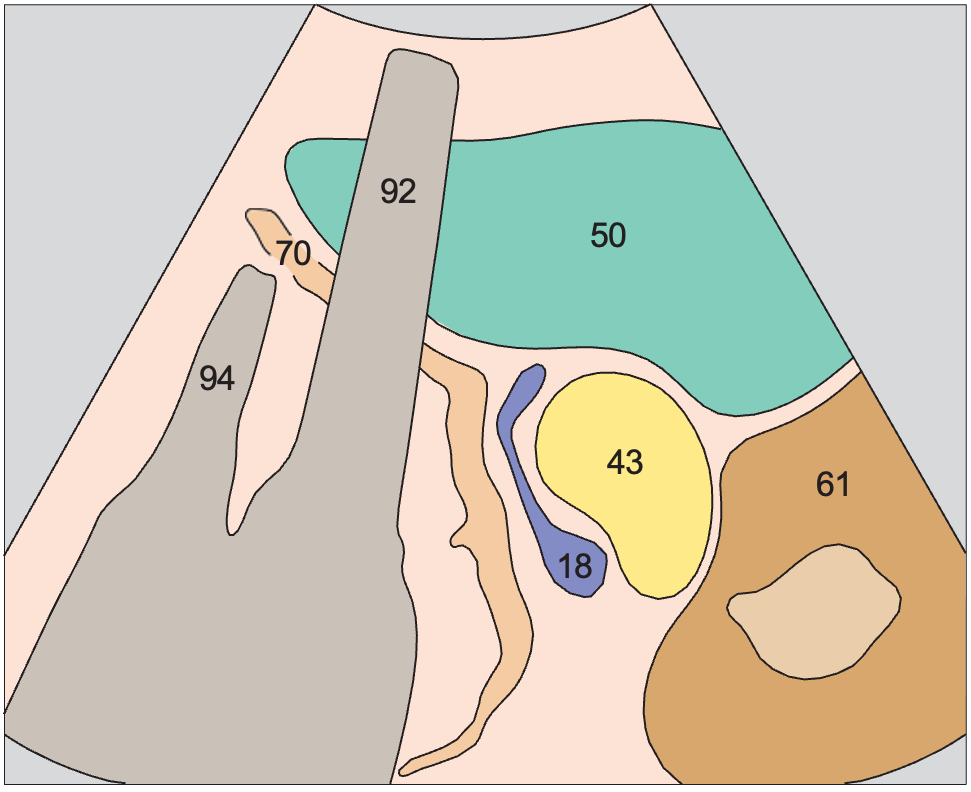

Spleen, kidney, pancreas
Spleen / Transverse Flank Scans of the Spleen · Transverse plane

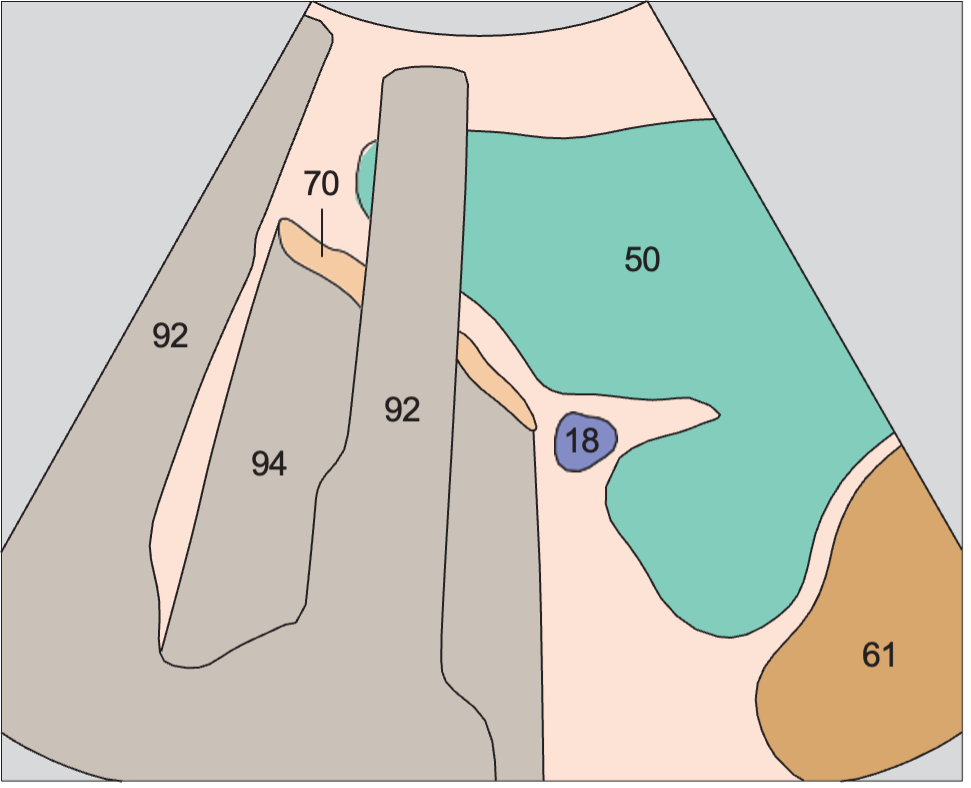

Spleen, stomach
Spleen / Transverse Flank Scans of the Spleen · Transverse plane

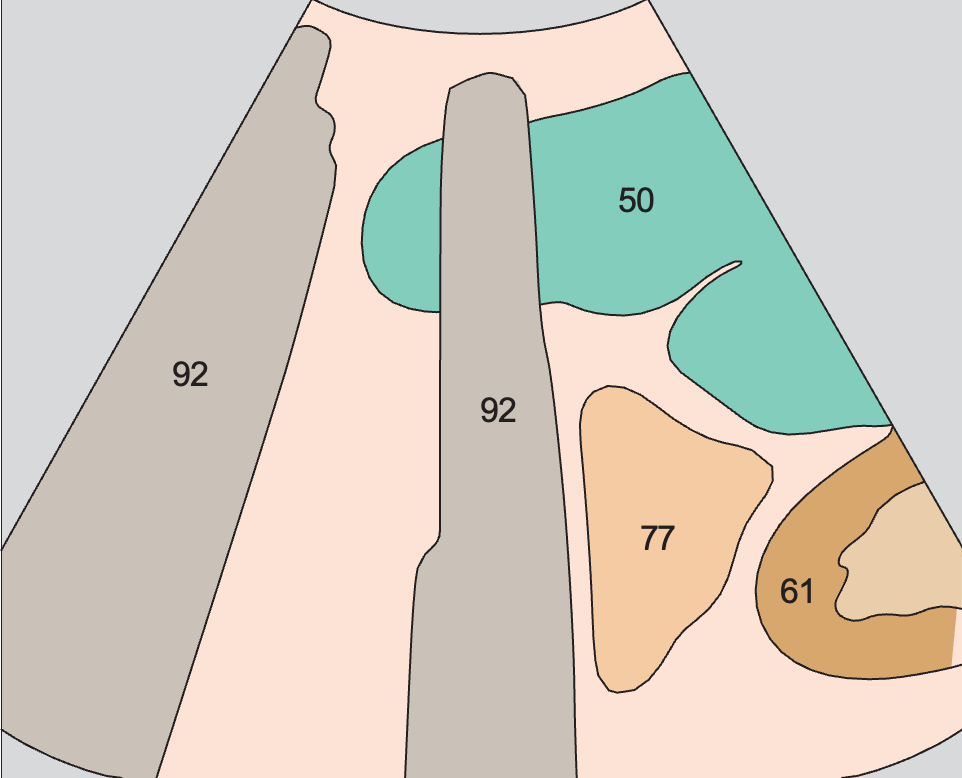

Spleen, small bowel
Spleen / Transverse Flank Scans of the Spleen · Transverse plane

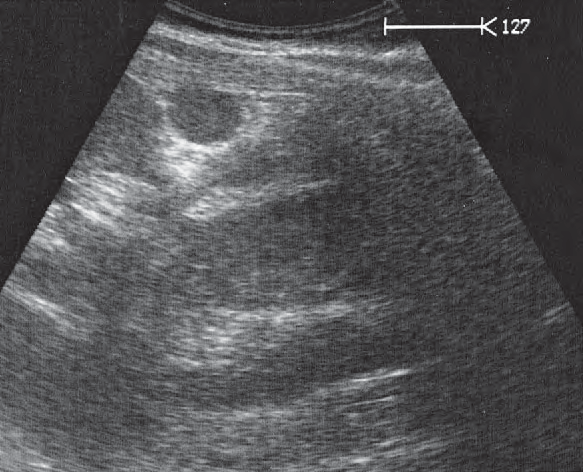

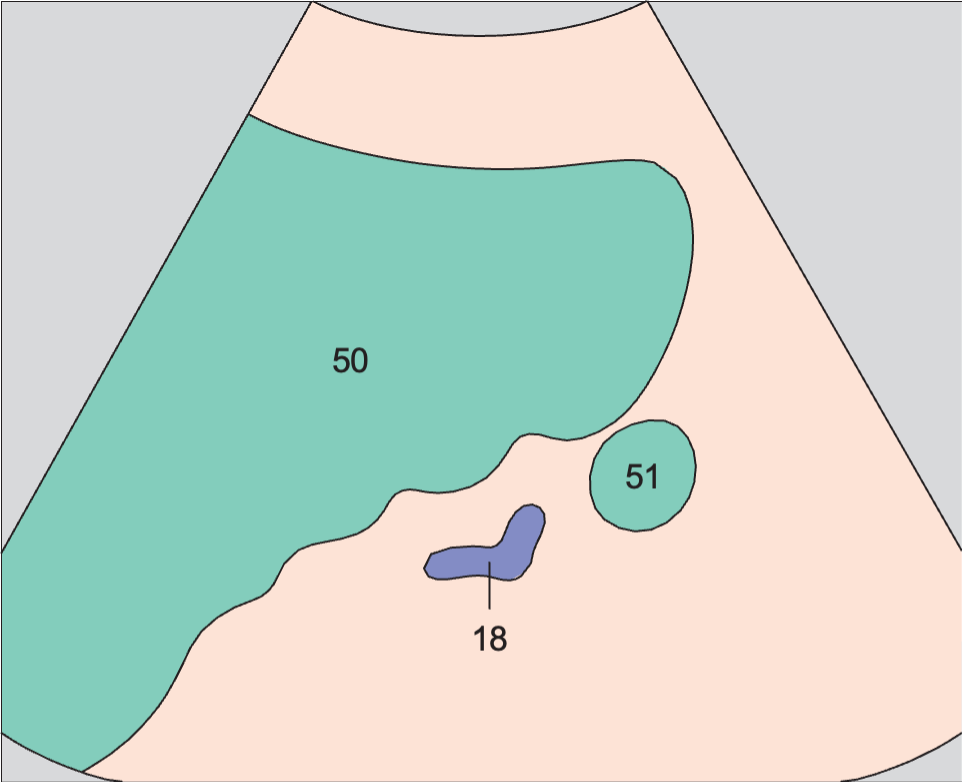

Accessory spleen
Spleen / Details of the Spleen

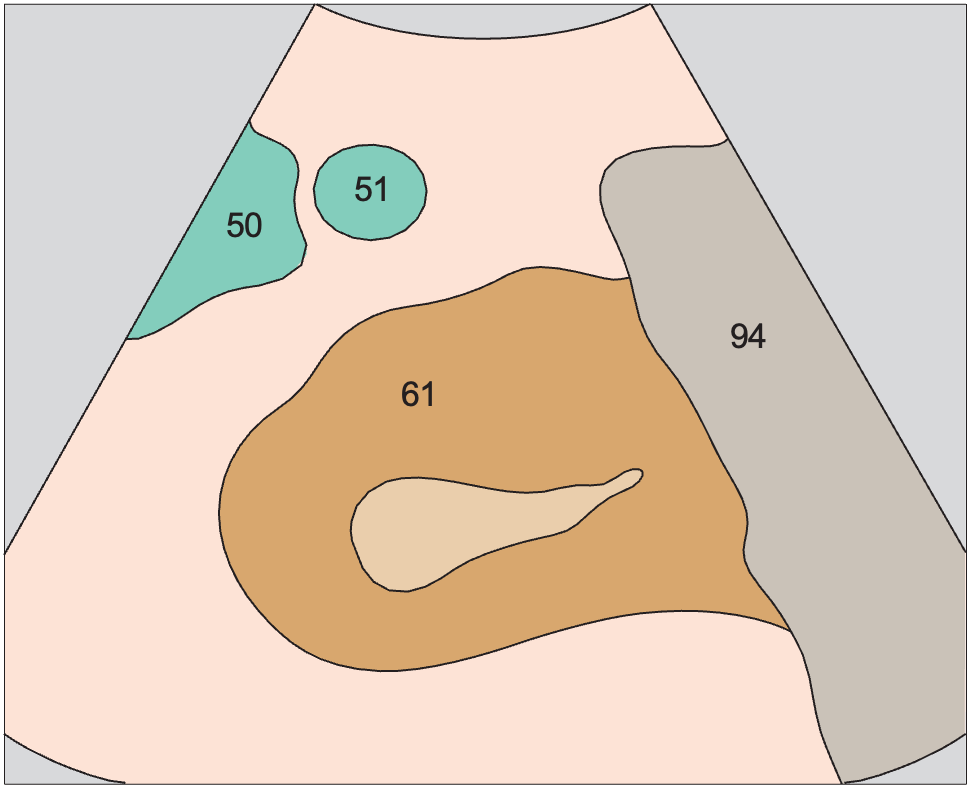

Accessory spleen
Spleen / Details of the Spleen

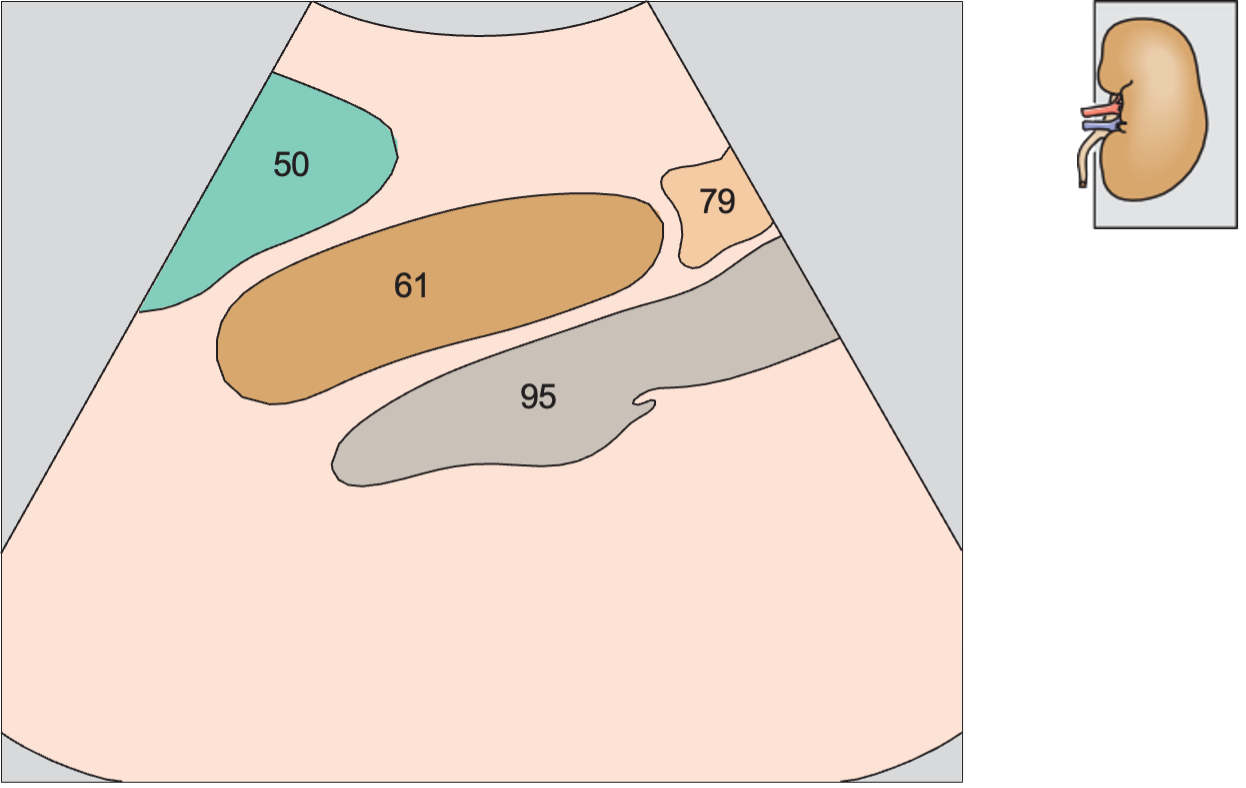

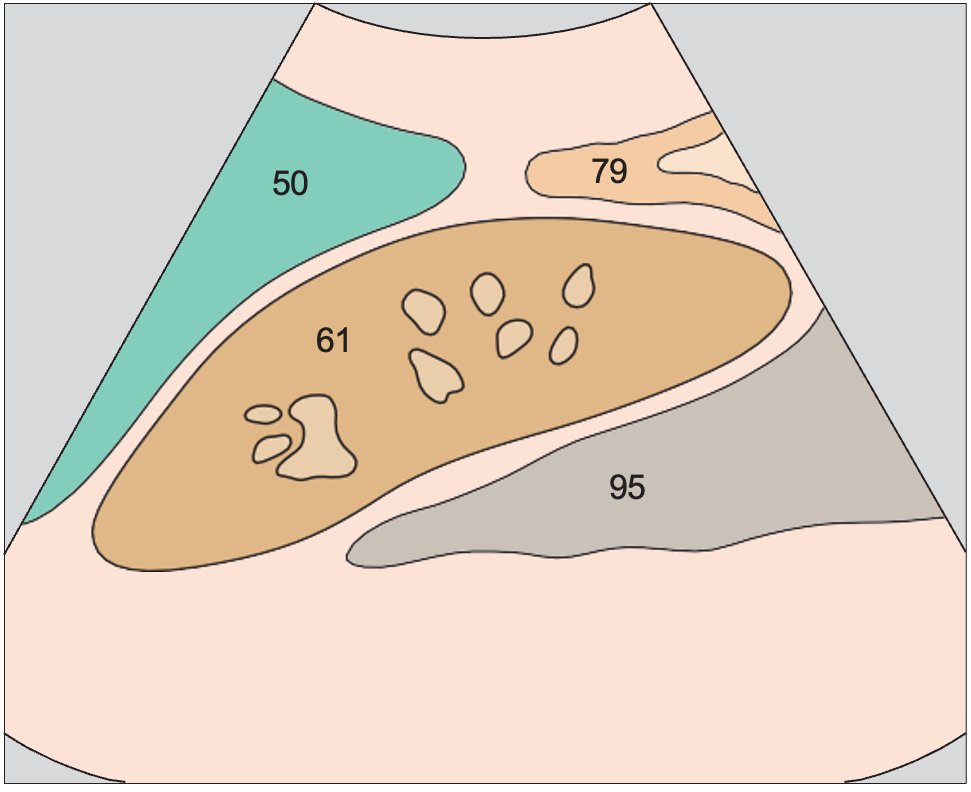

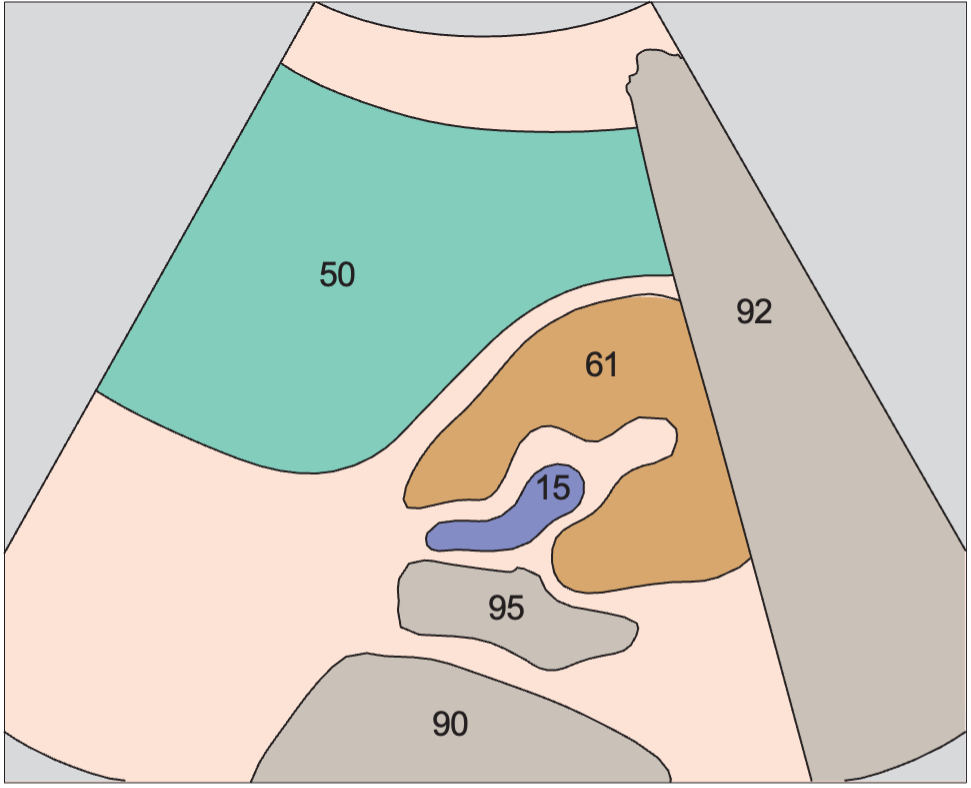

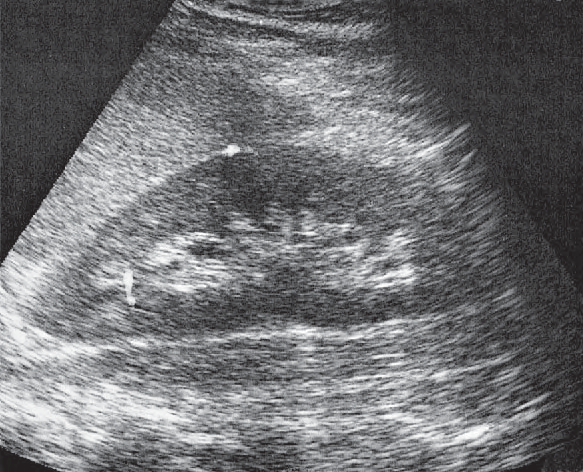

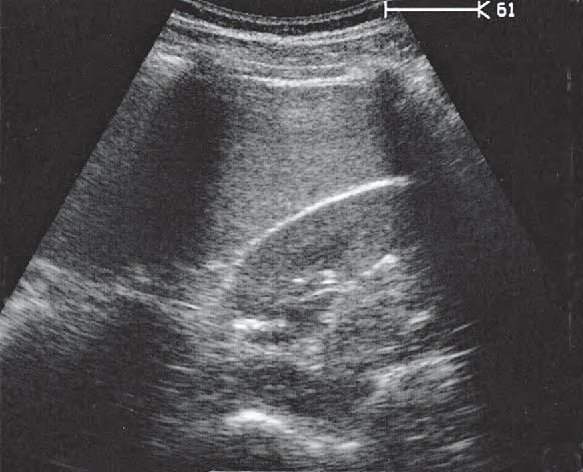

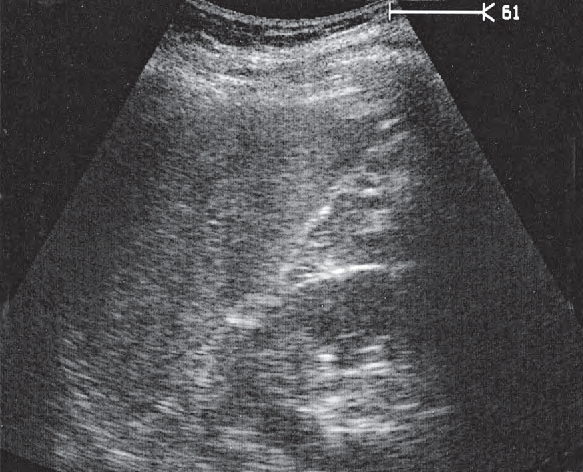

Kidney, spleen, psoas muscle
Kidneys / Longitudinal Flank Scans of the Left Kidney from Posterior to Anterior · Longitudinal plane
Kidney, spleen, psoas muscle
Kidneys / Longitudinal Flank Scans of the Left Kidney from Posterior to Anterior · Longitudinal plane

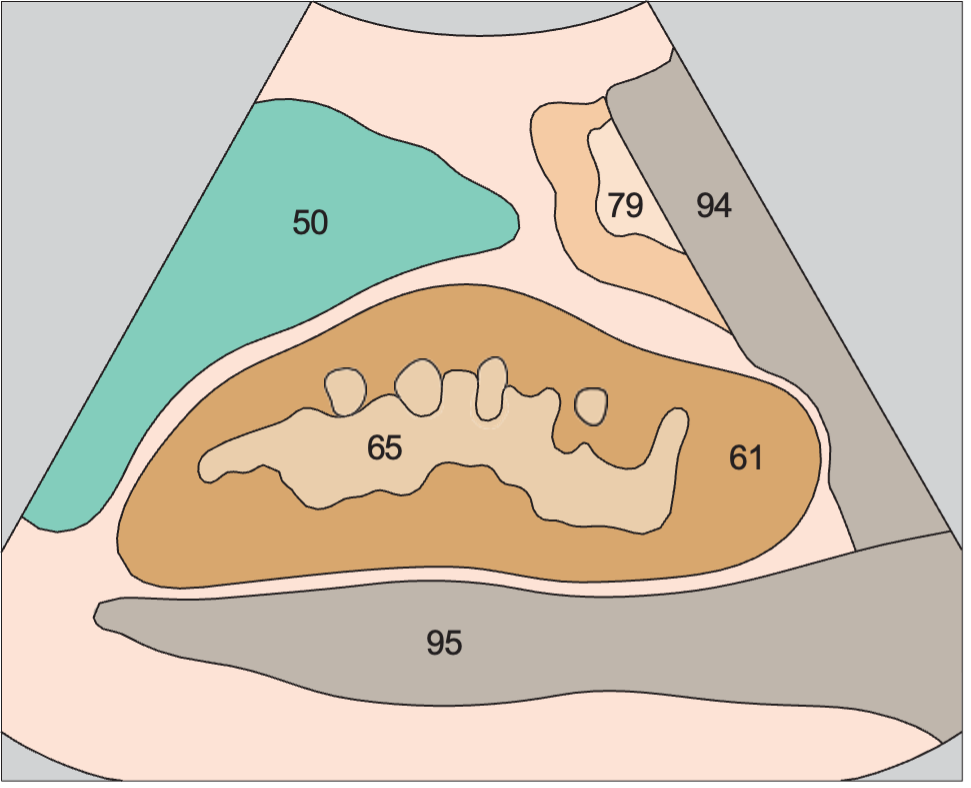

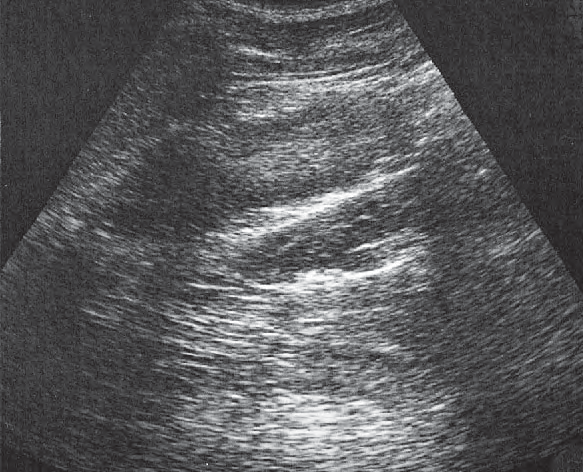

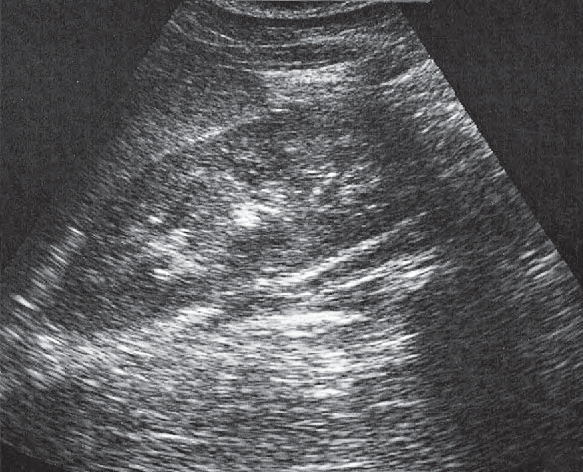

Kidney, spleen, psoas muscle
Kidneys / Longitudinal Flank Scans of the Left Kidney from Posterior to Anterior · Longitudinal plane

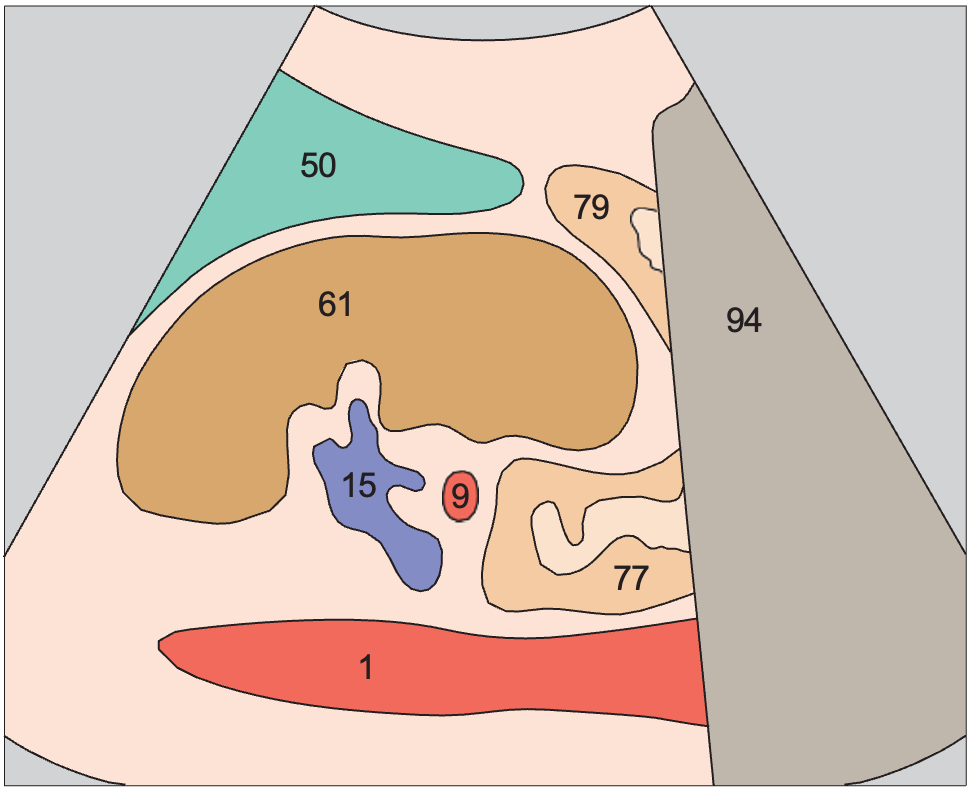

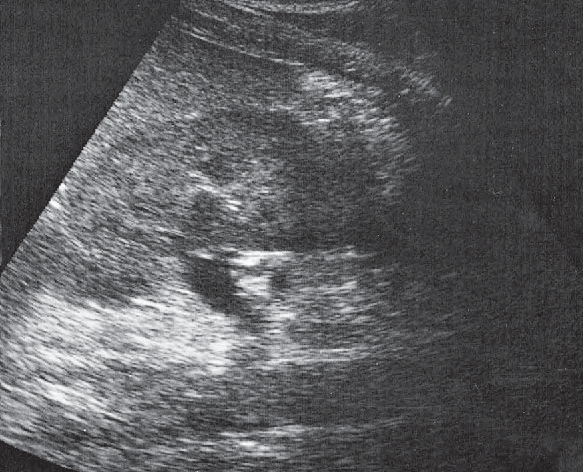

Kidney, renal vein, spleen, aorta
Kidneys / Longitudinal Flank Scans of the Left Kidney from Posterior to Anterior · Longitudinal plane

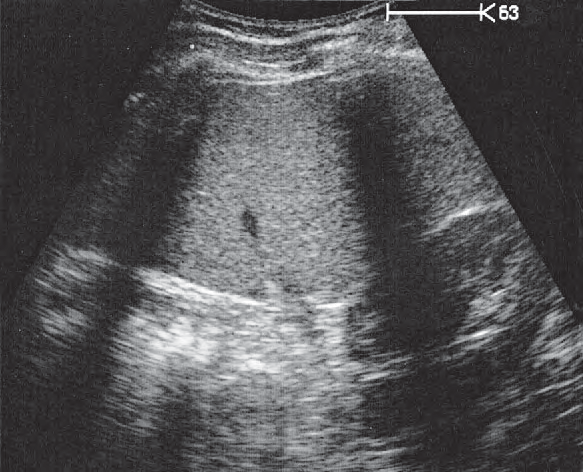

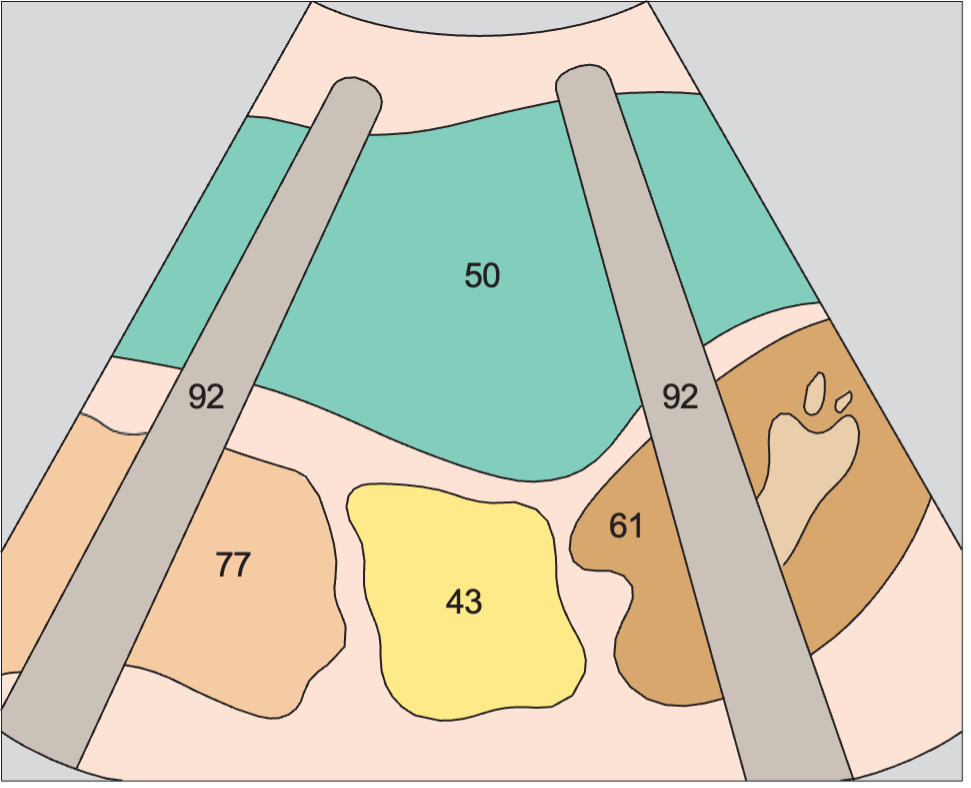

Kidney, spleen, bowel
Kidneys / Transverse Flank Scans of the Left Kidney from Above Downward · Transverse plane
Kidney, spleen, psoas muscle
Kidneys / Transverse Flank Scans of the Left Kidney from Above Downward · Transverse plane

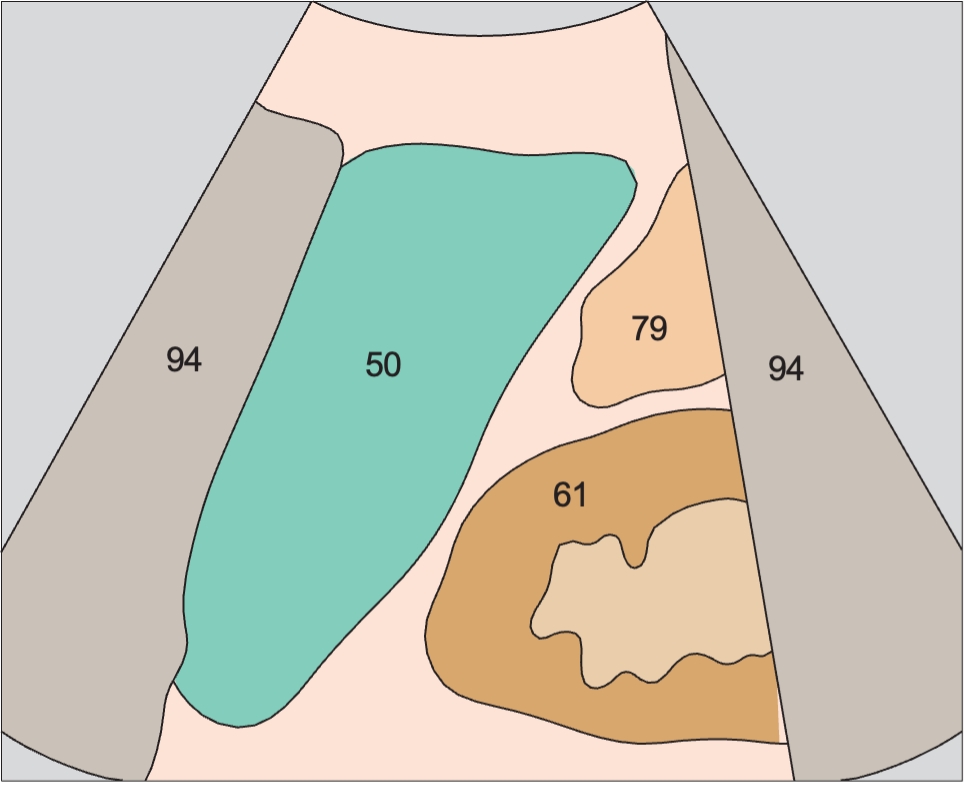

Kidney, spleen
Adrenal Glands / Longitudinal Flank Scans of the Left Adrenal Gland from Back to Front · Longitudinal plane

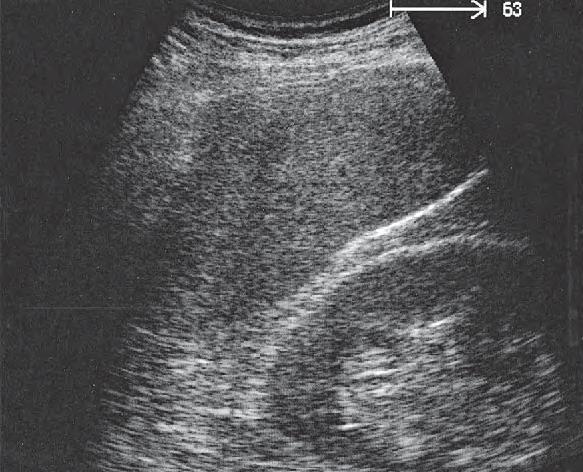

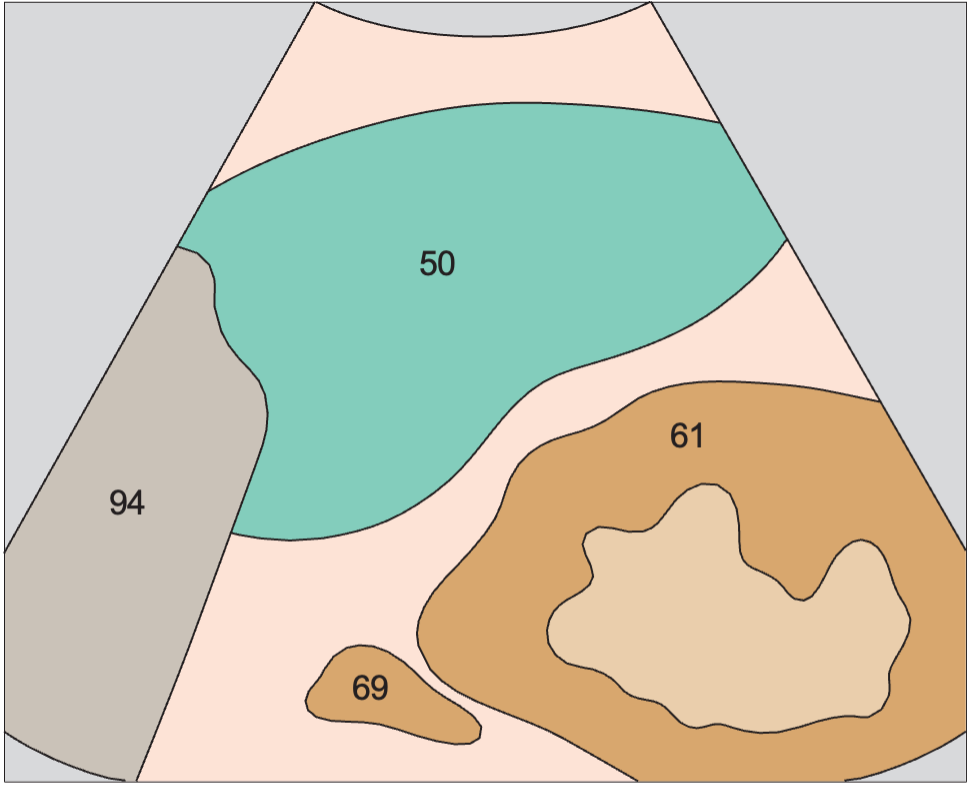

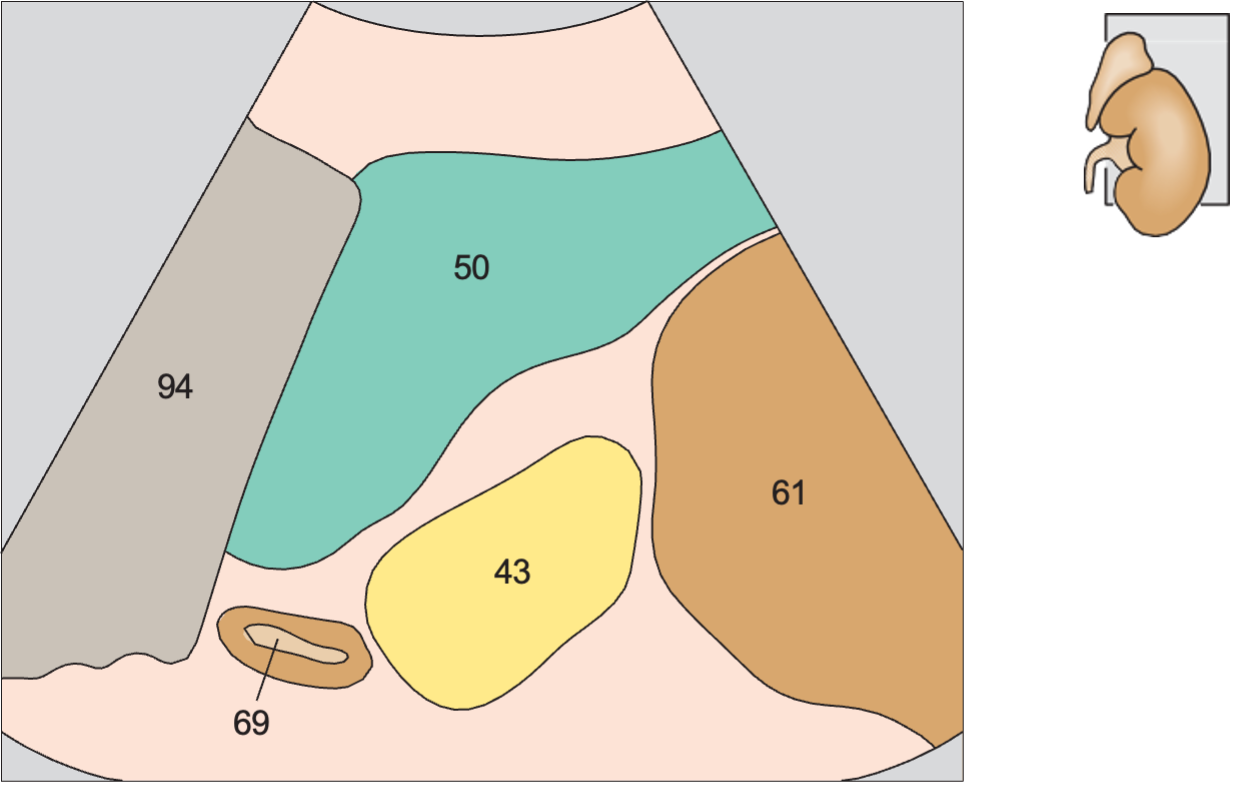

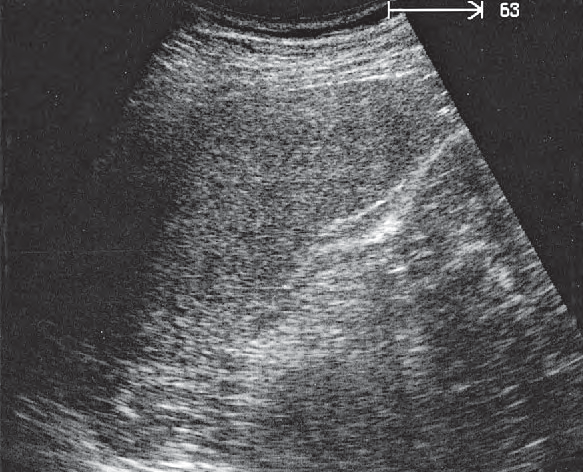

Adrenal gland, kidney, spleen
Adrenal Glands / Longitudinal Flank Scans of the Left Adrenal Gland from Back to Front · Longitudinal plane
Adrenal gland, kidney, spleen
Adrenal Glands / Longitudinal Flank Scans of the Left Adrenal Gland from Back to Front · Longitudinal plane

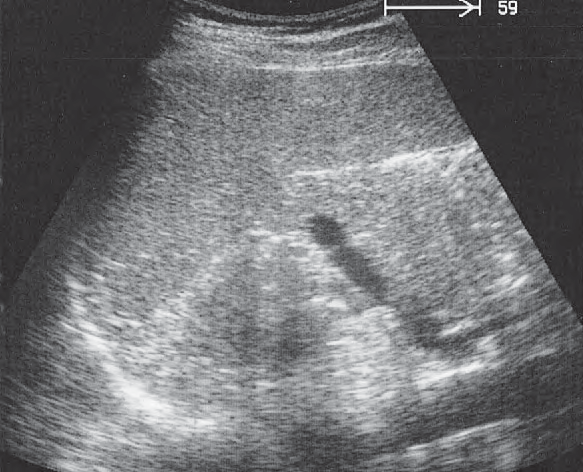

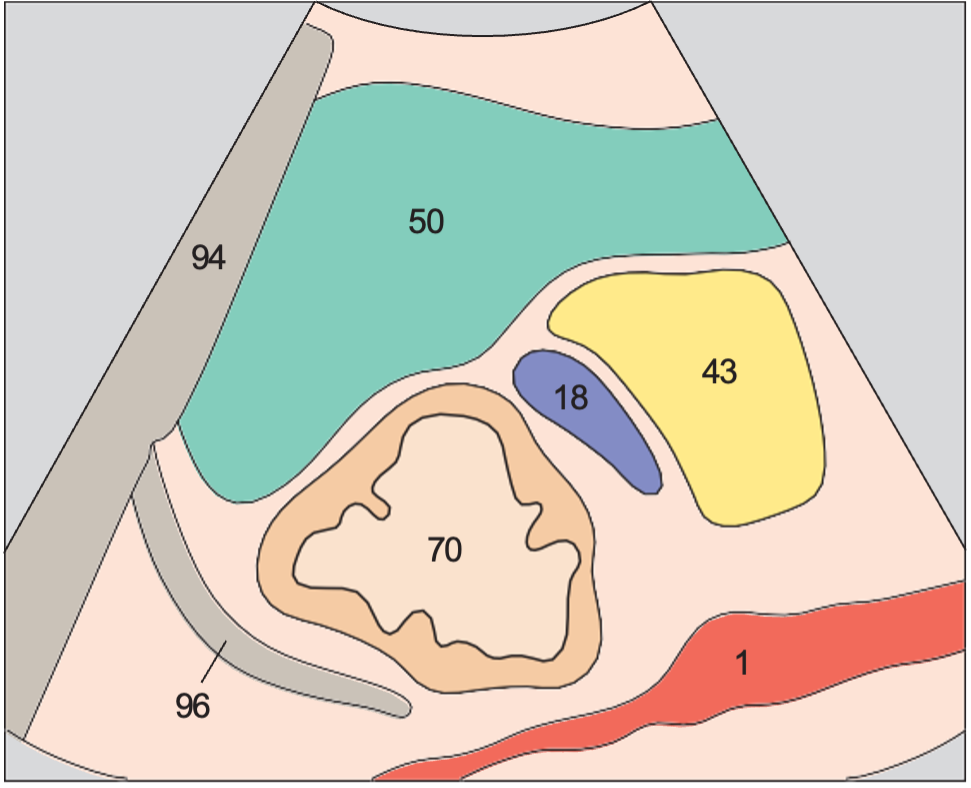

Spleen, tail of pancreas
Adrenal Glands / Longitudinal Flank Scans of the Left Adrenal Gland from Back to Front · Longitudinal plane
Anatomy diagrams, ultrasound images and probe positions are part of the Ultrasound Anatomy atlas. Colours follow the atlas legend, grouping vessels, organs and other structures by type.
