Uncinate Process Ultrasound Anatomy

3 min read
Uncinate process ultrasound image

Uncinate process ultrasound anatomy is presented here as a labeled cross-sectional atlas. Every view pairs a color-coded anatomy diagram with the matching real ultrasound image, so you can learn the expected shape and position of the uncinate process and then recognise it on a real scan.

In the atlas legend the uncinate process belongs to the pancreas group and is shown in a consistent colour wherever it appears. The small body marker on each card shows where the transducer sits for that view, which makes it easier to reproduce the image at the bedside.

Uncinate process appears in 6 labeled views in this atlas. Each card below shows the anatomy diagram, the real ultrasound image and the probe position for that scan. Coloured dots list every structure labeled in the view, with uncinate process highlighted.

6Scan views

Uncinate process across the atlas

Probe position, Head of pancreas, superior mesenteric vein, uncinate process

Head of pancreas, superior mesenteric vein, uncinate process

Pancreas / Pancreas in Longitudinal Sections · Longitudinal plane

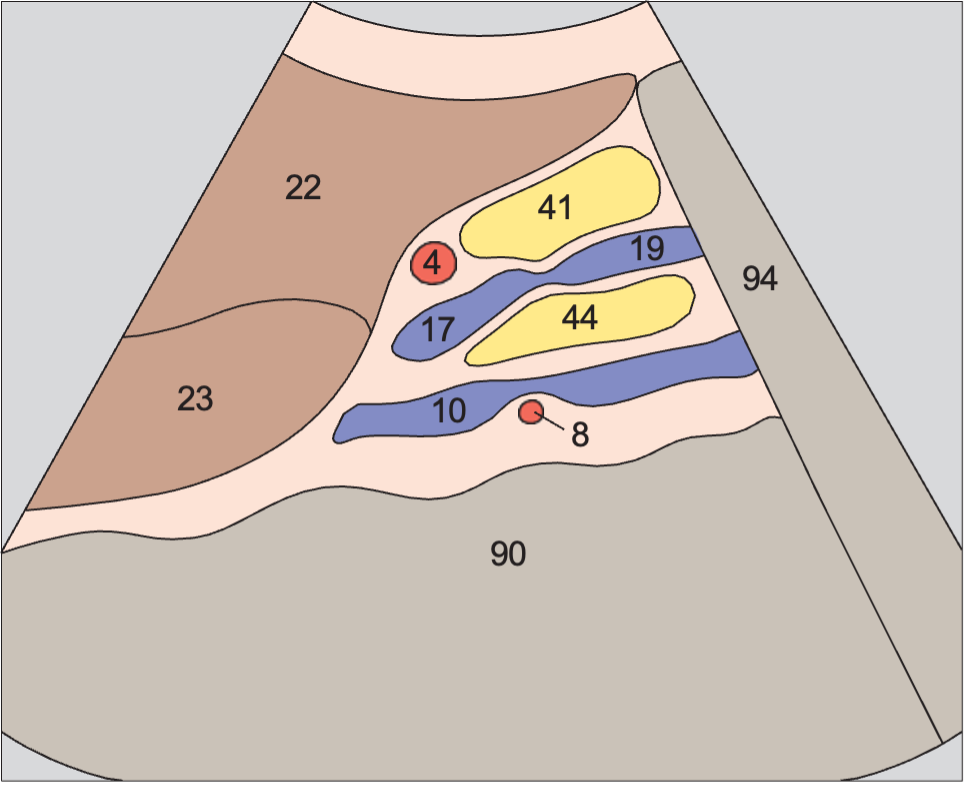

AnatomyUncinate process anatomy diagram, Head of pancreas, superior mesenteric vein, uncinate process

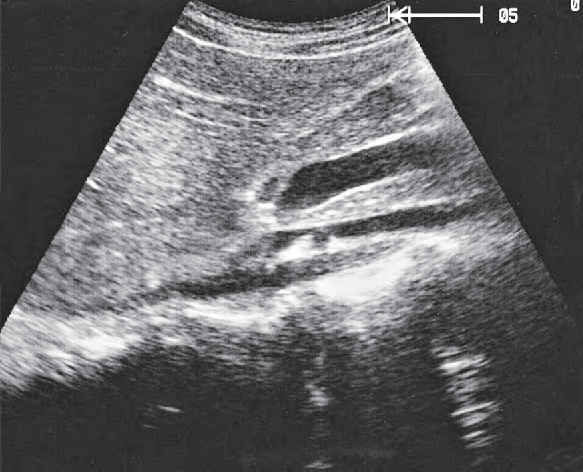

UltrasoundUncinate process ultrasound image, Head of pancreas, superior mesenteric vein, uncinate process
4Hepatic artery8Right renal artery10Vena cava17Portal vein19Superior mesenteric vein22Quadrate lobe23Caudate lobe41Head of pancreas44Uncinate process90Spinal column94Artifact
Probe position, Head of pancreas, superior mesenteric vein, uncinate process

Head of pancreas, superior mesenteric vein, uncinate process

Pancreas / Pancreas in Longitudinal Sections · Longitudinal plane

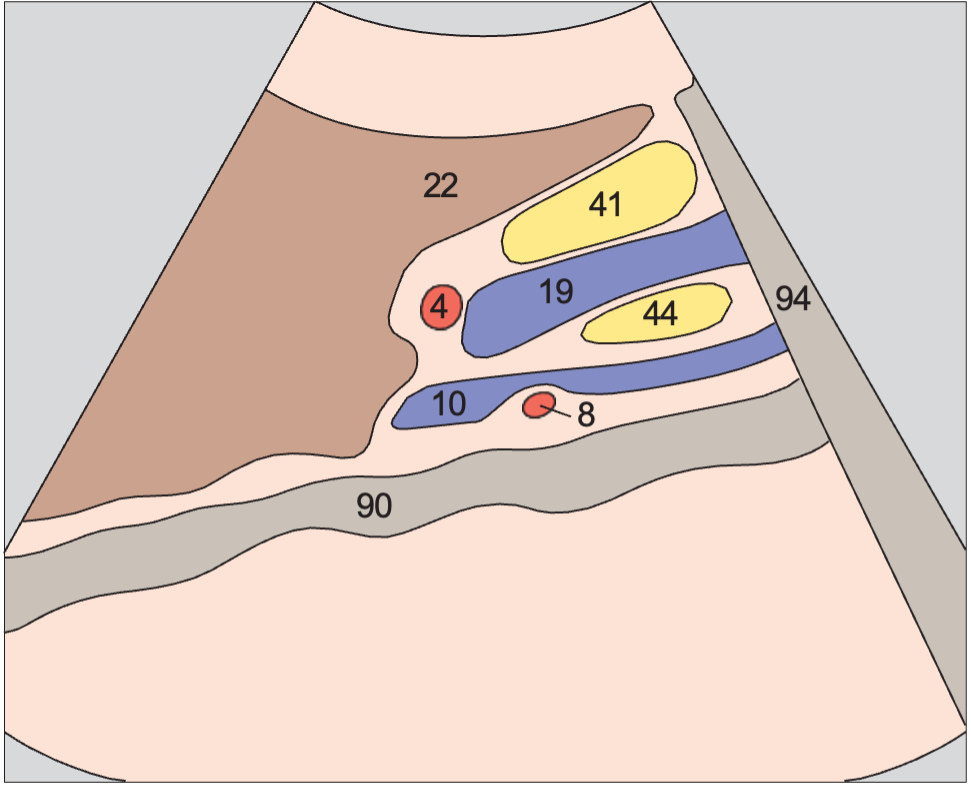

AnatomyUncinate process anatomy diagram, Head of pancreas, superior mesenteric vein, uncinate process
UltrasoundUncinate process ultrasound image, Head of pancreas, superior mesenteric vein, uncinate process
4Hepatic artery8Right renal artery10Vena cava19Superior mesenteric vein22Quadrate lobe41Head of pancreas44Uncinate process90Spinal column94Artifact
Probe position, Head of pancreas, vena cava, superior mesenteric vein

Head of pancreas, vena cava, superior mesenteric vein

Pancreas / Head of the Pancreas in Transverse Sections · Transverse plane

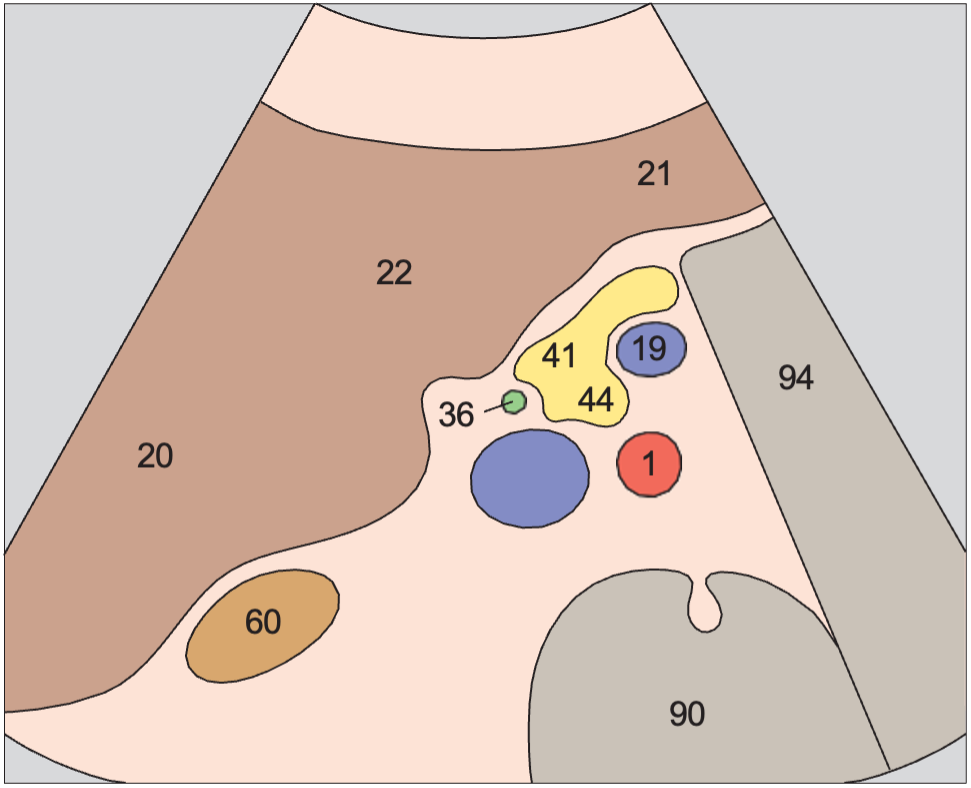

AnatomyUncinate process anatomy diagram, Head of pancreas, vena cava, superior mesenteric vein

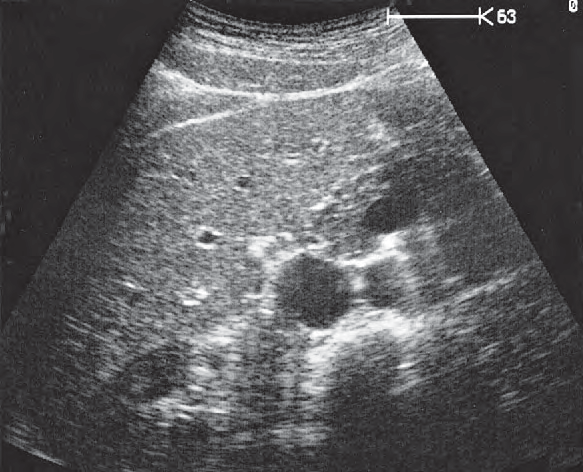

UltrasoundUncinate process ultrasound image, Head of pancreas, vena cava, superior mesenteric vein
1Aorta19Superior mesenteric vein20Right lobe of liver21Left lobe of liver22Quadrate lobe36Bile duct41Head of pancreas44Uncinate process60Right kidney90Spinal column94Artifact
Probe position, Head of pancreas, vena cava, superior mesenteric vein, uncinate process, gallbladder

Head of pancreas, vena cava, superior mesenteric vein, uncinate process, gallbladder

Pancreas / Head of the Pancreas in Transverse Sections · Transverse plane

AnatomyUncinate process anatomy diagram, Head of pancreas, vena cava, superior mesenteric vein, uncinate process, gallbladder
UltrasoundUncinate process ultrasound image, Head of pancreas, vena cava, superior mesenteric vein, uncinate process, gallbladder
1Aorta10Vena cava19Superior mesenteric vein20Right lobe of liver21Left lobe of liver22Quadrate lobe30Gallbladder36Bile duct41Head of pancreas44Uncinate process60Right kidney70Stomach90Spinal column94Artifact
Probe position, Body of pancreas, splenic vein, superior mesenteric artery, aorta

Body of pancreas, splenic vein, superior mesenteric artery, aorta

Pancreas / Body of the Pancreas in Transverse Sections · Transverse plane

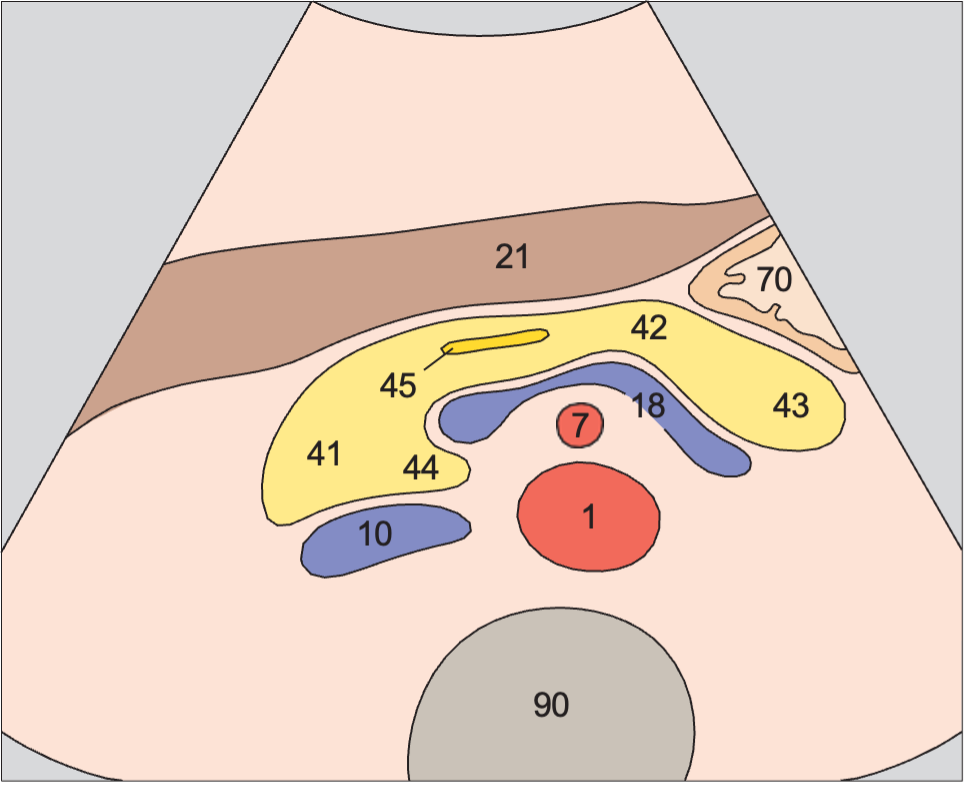

AnatomyUncinate process anatomy diagram, Body of pancreas, splenic vein, superior mesenteric artery, aorta

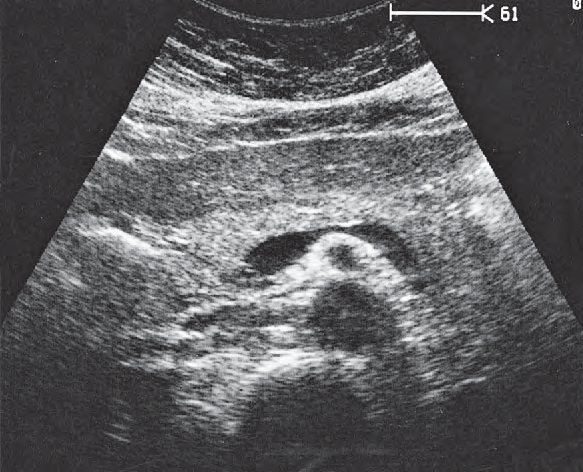

UltrasoundUncinate process ultrasound image, Body of pancreas, splenic vein, superior mesenteric artery, aorta
1Aorta7Superior mesenteric artery10Vena cava18Splenic vein21Left lobe of liver41Head of pancreas42Body of pancreas43Tail of pancreas44Uncinate process45Pancreatic duct70Stomach90Spinal column
Probe position, Transverse scan of pancreatic duct

Transverse scan of pancreatic duct

Pancreas / Details of the Pancreas

AnatomyUncinate process anatomy diagram, Transverse scan of pancreatic duct
UltrasoundUncinate process ultrasound image, Transverse scan of pancreatic duct
19Superior mesenteric vein20Right lobe of liver21Left lobe of liver22Quadrate lobe24Ligamentum teres30Gallbladder41Head of pancreas42Body of pancreas43Tail of pancreas44Uncinate process45Pancreatic duct70Stomach94Artifact
